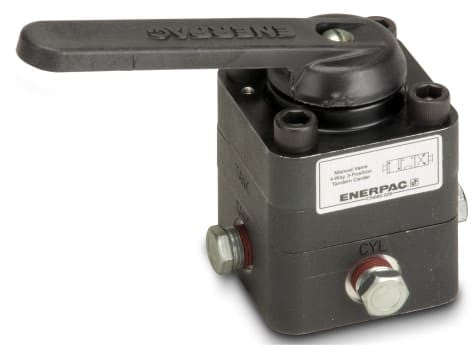

Enerpac VM/VE/VC-Series Directional Control Valves

Advance/Retract and Advance/Hold/Retract operation of single- and double-acting cylinders and tools
Manual or solenoid operation
Pump mounting will retrofit on most Enerpac pumps
Available â€œlocking” option on VM-Series valves for load-holding applications
Standard â€œlocking” feature on VE-Series 3-position valves
User adjustable relief valve allows the operator to easily set the working pressure. Venturi Valve Technology
For fast return of single-acting gravity and spring return cylinders
Available as manual or solenoid valve on ZU4- and ZE-Series electric pumps

Applications

Controlling multiple hydraulic cylinders from a single pump
Synchronised lifting and lowering of heavy loads using multi-cylinder sets
Industrial pressing and clamping sequences in manufacturing environments
Hydraulic jacking systems in civil and structural engineering applications
Custom hydraulic circuit assemblies for maintenance and industrial tooling systems

Download the Enerpac Hydraulic Pumps Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Specification	Value
Valve Series	VM / VE / VC
VM	Pump-mounted manual directional control valves
VE	Pump-mounted solenoid directional control valves
VC	Remote-mounted manual directional control valves
Max Working Pressure	700 bar
Port Size	3/8" NPTF or BSP
Flow Rate (max)	20 l/min
Valve Positions	2-position (VM22/VE22) or 3-position (VM33/VE33/VM43/VE43)
Cylinder Compatibility	Single-acting and double-acting

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
