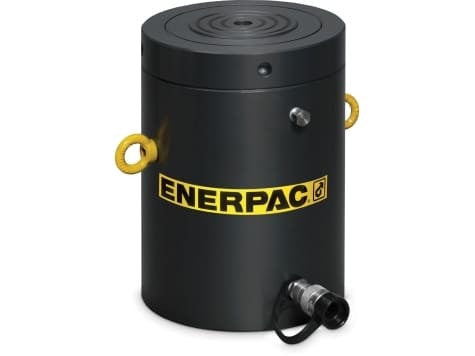

Enerpac HCL-Series High-Tonnage Lock Nut Cylinders

Lock nut provides positive and safe mechanical load holding
Low-friction locking rings spin easy, save time and effort
Designed to withstand 10% side load up to 90% of maximum stroke
Hardened surface resists side loading and cyclic wear
Overflow port as stroke limiter to prevent plunger blow-out
Weather protected, inside and out
Replaceable bearings enclose the plunger for support throughout the stroke
Certified lifting eyes and base mounting holes

Applications

High-force sustained load holding in heavy civil and structural applications
Bridge bearing and structural jacking with mechanical lock for long-duration support
Large machinery base levelling and alignment requiring stable load retention
Heavy-tonnage compression testing without continuous hydraulic pressure
Offshore and mining applications requiring high-force mechanical load holding

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
HCL504			100		785	214			22
HCL506			150		1178	214			27
HCL508			200		1571	314			32
HCL5010			250		1963	314			38
HCL5012			300		2356	414	714		43
HCL1002	100	1002	50	143,1	716	187		175	35
HCL1004	100	1002	100	143,1	1431	237			44
HCL1006	100	1002	150	143,1	2147	237			54
HCL1008	100	1002	200	143,1	2863	337			63
HCL10010	100	1002	250	143,1	3578	337			73
HCL10012	100	1002	300	143,1	4294	437	737		82
HCL1502	150	1497	50	213,8	1069	209		215	59
HCL1504	150	1497	100	213,8	2138	259			73
HCL1506	150	1497	150	213,8	3207	259			87
HCL1508	150	1497	200	213,8	4276	359			102
HCL15010	150	1497	250	213,8	5346	359			116
HCL15012	150	1497	300	213,8	6415	459	759		130
HCL2002	200	1985	50	283,5	1418	238		250	85
HCL2004	200	1985	100	283,5	2835	288			105
HCL2006	200	1985	150	283,5	4253	288			124
HCL2008	200	1985	200	283,5	5671	388			143
HCL20010	200	1985	250	283,5	7088	388			163
HCL20012	200	1985	300	283,5	8506	488	788		182
HCL2502	250	2541	50	363,1	1815	249		280	119
HCL2504	250	2541	100	363,1	3631	299			143
HCL2506	250	2541	150	363,1	5446	299			167
HCL2508	250	2541	200	363,1	7261	399			192
HCL25010	250	2541	250	363,1	9076	399			216
HCL25012	250	2541	300	363,1	10.892	499	799		240
HCL3002	300	3036	50	433,7	2169	278		305	158
HCL3004	300	3036	100	433,7	4337	328			186
HCL3006	300	3036	150	433,7	6506	328			215
HCL3008	300	3036	200	433,7	8675	428			244
HCL30010	300	3036	250	433,7	10.843	428			272
HCL30012	300	3036	300	433,7	13.012	528	828		301

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
