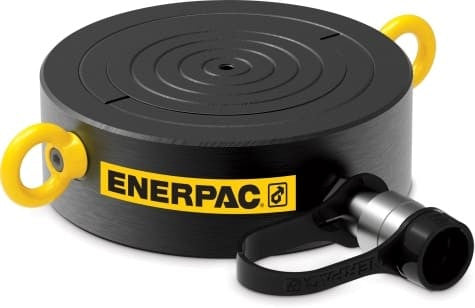

Enerpac CULP-Series Ultra-Flat Cylinders with Stop Ring

Up to 4% side load of maximum capacity
Stop ring for maximum stroke limitation
Extremely low collapsed height

Applications

Lifting machinery and structures where vertical headroom is extremely restricted
Mould assembly and die change in automotive stamping and injection moulding
Aligning structural steel and bridge components with minimal clearance available
Under-vehicle lifting in confined inspection pits
Pre-stressed concrete tendon and anchor initial load application

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton/kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
CULP10	10 (97)	6	13,9	8,3	27,5	33,5	72	1,0
CULP20	20 (198)	6	28,3	17,0	32,0	38,0	90	1,7
CULP30	30 (310)	6	44,2	26,5	35,0	41,0	105	2,5
CULP50	50 (550)	6	78,5	47,1	44,5	50,5	140	5,4
CULP100	100 (1078)	6	153,9	92,5	65,0	71,0	195	11,5

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
