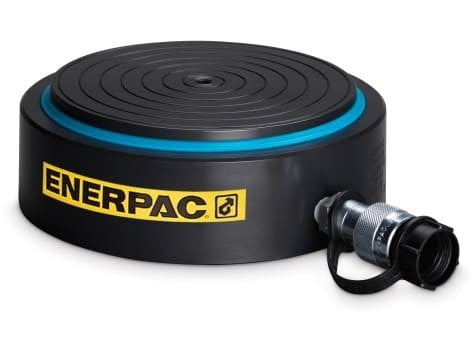

Enerpac CUSP-Series Ultra-Flat High-Tonnage Cylinders

$0.00

GST excluded

Enerpac CUSP-Series Ultra-Flat High-Tonnage Cylinders Up to 4% side load of maximum capacity Extremely low collapsed height Integrated tilting function up to 4 degrees to evenly distribute t...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac CUSP-Series Ultra-Flat High-Tonnage Cylinders

Up to 4% side load of maximum capacity
Extremely low collapsed height
Integrated tilting function up to 4 degrees to evenly distribute the load
Nitrocarburized surface treatment for harsh conditions

Applications

Very-low-clearance, high-force lifting in heavy industry and civil infrastructure
Bridge bearing replacement and structural jacking with minimal headroom available
Large-tonnage die and mould change in automotive and aerospace stamping
Synchronised heavy-lift systems requiring compact, powerful cylinders
Mining equipment maintenance requiring maximum force in severely constrained spaces

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton/kN)	Tilted Stroke (mm)	Straight Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)
CUSP10	10 (97)	6	6,7	13,9	9,3	35,5
CUSP20	20 (198)	6	7,0	28,3	19,8	40,5
CUSP30	30 (310)	6	7,3	44,2	32,1	42,5
CUSP50	50 (550)	10	13,3	78,5	104	57,0
CUSP75	75 (792)	10	14,0	113,1	158	60,5
CUSP100	100 (1078)	10	14,7	153,9	226	63,5
CUSP150	150 (1589)	10	14,3	227,0	324	65,0
CUSP200	200 (2090)	10	14,9	298,6	446	69,0
CUSP250	250 (2542)	10	15,5	363,1	569	72,5
CUSP300	300 (3167)	10	14,1	452,4	637	72,5
CUSP400	400 (4008)	10	14,6	572,6	837	77,5
CUSP500	500 (5115)	10	15,2	730,6	1111	82,5
CUSP600	600 (5987)	10	15,6	855,3	1334	87,5
CUSP750	750 (7527)	10	16,3	1075,2	1757	93,5
CUSP1000	1000 (10.165)	10	17,4	1452,2	2531	103,0

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
