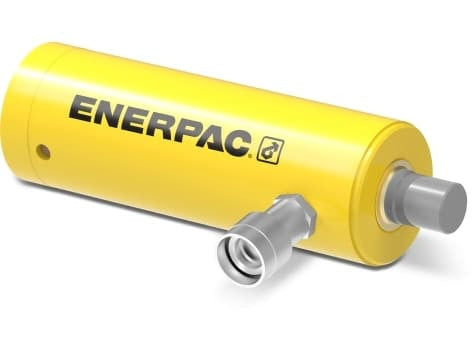

Enerpac BRC/BRP-Series Pull Cylinders

$0.00

GST excluded

Enerpac BRC/BRP-Series Pull Cylinders High strength alloy steel construction Hard chrome-plated plunger for long life Replaceable links on BRP-models Baked enamel finish for increased corr...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac BRC/BRP-Series Pull Cylinders

High strength alloy steel construction
Hard chrome-plated plunger for long life
Replaceable links on BRP-models
Baked enamel finish for increased corrosion resistance
CR400 coupler and dust cap included on all models
Plunger wiper reduces contamination, extending cylinder life

Applications

Pulling and extracting components such as bearings, pins and interference-fit couplings
Structural pulling and alignment during steel fabrication and erection
Hydraulic pipe pulling in directional drilling and conduit installation
Frame and chassis straightening in heavy vehicle and equipment repair
Mining and industrial plant maintenance: high-force component extraction

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton/kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height (mm)	Ext. Height (mm)
BRC25	2,5 (24)	127	3,5	45	264	391
BRC46	5 (51)	140	7,3	101	301	441
BRC106	10 (105)	151	15,0	228	289	440
BRP106C	10 (110)	150	15,8	237	601	751
BRP106L	10 (110)	150	15,8	237	573	723
BRP306	30 (325)	154	46,4	715	1,110	1,264
BRP606	50 (506)	153	72,1	1,103	718	871

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
