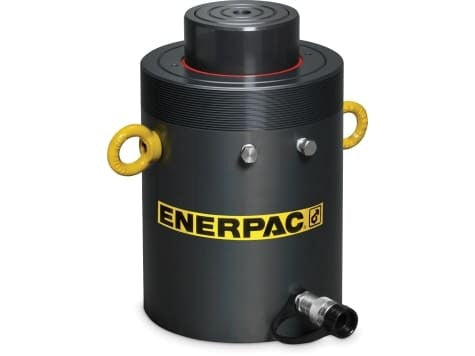

Enerpac HCG-Series High-Tonnage Single-Acting Cylinders

Please refer to the catalogue PDF for full product features and specifications

Applications

Bridge bearing replacement and deck jacking in heavy civil infrastructure
Structural steel erection and lifting requiring very large force capacity
Heavy industrial press operations for forming, straightening and assembly
Offshore module installation, seafastenings and heavy lift operations
Mining and minerals processing equipment maintenance and alignment

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
HCG502	50	550	50	78,5	393	183		130	17
HCG504	50	550	100	78,5	785	233			20
HCG506	50	550	150	78,5	1178	233			24
HCG508	50	550	200	78,5	1571	346			29
HCG5010	50	550	250	78,5	1963	346			32
HCG5012	50	550	300	78,5	2356	446	746		36
HCG1002	100	1002	50	143,1	716	202		175	33
HCG1004	100	1002	100	143,1	1431	252			40
HCG1006	100	1002	150	143,1	2147	252			46
HCG1008	100	1002	200	143,1	2863	379			58
HCG10010	100	1002	250	143,1	3578	379			65
HCG10012	100	1002	300	143,1	4294	479	779		71
HCG1502	150	1497	50	213,8	1069	220		215	56
HCG1504	150	1497	100	213,8	2138	270			66
HCG1506	150	1497	150	213,8	3207	270			76
HCG1508	150	1497	200	213,8	4276	397			94
HCG15010	150	1497	250	213,8	5346	397			104
HCG15012	150	1497	300	213,8	6415	497	797		115
HCG2002	200	1985	50	283,5	1418	231		250	81
HCG2004	200	1985	100	283,5	2835	281			95
HCG2006	200	1985	150	283,5	4253	281			109
HCG2008	200	1985	200	283,5	5671	408			136
HCG20010	200	1985	250	283,5	7088	408			150
HCG20012	200	1985	300	283,5	8506	508	808		164
HCG2502	250	2541	50	363,1	1815	241		280	107
HCG2504	250	2541	100	363,1	3631	291			125
HCG2506	250	2541	150	363,1	5446	291			144
HCG2508	250	2541	200	363,1	7261	431			182
HCG25010	250	2541	250	363,1	9076	431			201
HCG25012	250	2541	300	363,1	10.892	531	831		219
HCG3002	300	3036	50	433,7	2169	296		305	158
HCG3004	300	3036	100	433,7	4337	346			182
HCG3006	300	3036	150	433,7	6506	346			206
HCG3008	300	3036	200	433,7	8675	446			230
HCG30010	300	3036	250	433,7	10.843	446			254
HCG30012	300	3036	300	433,7	13.012	546	846		278

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
