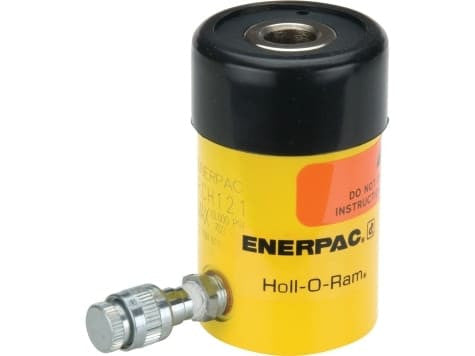

Enerpac RCH-Series Hollow Plunger Cylinders

$0.00

GST excluded

Enerpac RCH-Series Hollow Plunger Cylinders Hollow plunger design allows for both, pull and push forces Single-acting, spring-return Nickel-plated, floating center tube on models over 20 ton...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac RCH-Series Hollow Plunger Cylinders

Hollow plunger design allows for both, pull and push forces
Single-acting, spring-return
Nickel-plated, floating center tube on models over 20 ton increases product life
Baked enamel finish for increased corrosion resistance
Collar threads for easy fixturing
RCH120 includes AR630 coupler and has 1/4" NPTF port
RCH121 and RCH1211 have FZ1630 reducer and AR630 coupler, all other models feature CR400 coupler. Cylinder-Pump Sets All cylinders marked with an * are available as sets (cylinder, gauge, couplers, hose and pump) for your ordering convenience. Page:

Applications

Bolt and tie-rod tensioning through the centre bore
Pre-stressed concrete post-tensioning of tendons and anchors
Tie-rod tensioning in heavy presses, injection moulding and forming machines
Load cell calibration and testing rigs requiring through-hole force application
Infrastructure repair and strengthening using strand and bar post-tensioning

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
RCH120	(125)	8	17,9	14 75 75 136		63	69	1,5
RCH121 *	(125)	42	17,9	75	120	162	69	2,8
RCH1211	(125)	42	17,9	75		162	69	2,8
RCH123	(125)	76	17,9	136	184	260	69	4,4
RCH202 *	(215)	49	30,7	150 476		211	98	7,7
RCH206	(215)	155	30,7	476	306	461	98	14,1
RCH302 *	(326)	64	46,6	298 722		242	114	10,9
RCH306	(326)	155	46,6	722	330	485	114	21,8
RCH603 *	(576)	76	82,3	626 1259		323	159	28,1
RCH606	(576)	153	82,3	1259	323	476	159	35,4
RCH1003 *	(931)	76	133,0	1011

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
