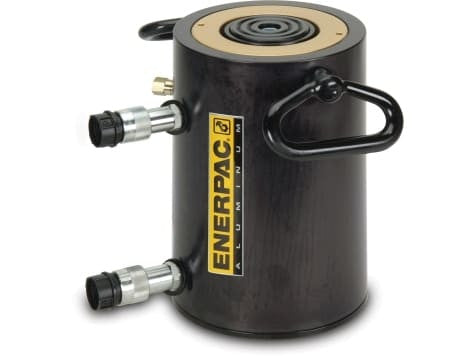

Enerpac RAR-Series Double-Acting Aluminum Cylinders

$0.00

GST excluded

Enerpac RAR-Series Double-Acting Aluminum Cylinders Double-acting for rapid retraction, regardless of hose lengths or system losses Composite bearings increase cylinder life and side load resi...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac RAR-Series Double-Acting Aluminum Cylinders

Double-acting for rapid retraction, regardless of hose lengths or system losses
Composite bearings increase cylinder life and side load resistance
Hard-Coat finish on all surfaces resists damage and extends cylinder life
Handle and CR400 couplers with dust caps included on all models
Steel base plate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over- travel and is capable of withstanding the full cylinder capacity

Applications

Controlled push and pull operations in weight-critical environments
Manufacturing jigs and fixtures requiring positive, powered retract
Chemical and marine environments requiring aluminium corrosion resistance
Remote maintenance tooling where low weight improves portability
Lightweight applications needing full bidirectional hydraulic force

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Stroke (mm)	Eff. Area Adv. (cm²)	Eff. Area Ret. (cm²)	Oil Cap. Adv. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
RAR202	20	50	31,2	18,6	156	189 239 289 339 389		239	7,4
RAR204	20	100	31,2	18,6	312		239	339	8,0
RAR206	20	150	31,2	18,6	468			439	8,6
RAR208	20	200	31,2	18,6	624		339	539	9,2
RAR2010	20	250	31,2	18,6	780			639	9,8
RAR302	30	50	44,2	24,5	221	201 251 301 351 401	201	251	8,6
RAR304	30	100	44,2	24,5	442			351	9,5
RAR306	30	150	44,2	24,5	663		301	451	10,4
RAR308	30	200	44,2	24,5	884			551	11,3
RAR3010	30	250	44,2	24,5	1105		401	651	12,2
RAR502	50	50	70,9	26,7	354	201 251 301 351 401		251	11,1
RAR504	50	100	70,9	26,7	709		251	351	12,7
RAR506	50	150	70,9	26,7	1063			451	14,3
RAR508	50	200	70,9	26,7	1417		351	551	15,9
RAR5010	50	250	70,9	26,7	1771			651	17,5
RAR1002	100	50	143,1	79,5	715	251 301 351 401 451	251	301	16,4
RAR1004	100	100	143,1	79,5	1431			401	19,3
RAR1006	100	150	143,1	79,5	2147		351	501	22,2
RAR1008	100	200	143,1	79,5	2863			601	25,1
RAR10010	100	250	143,1	79,5	3578		451	701	28,0
RAR1502	150	50	227,0	132,0	1135	248 298 348 398 448		298	24,2
RAR1504	150	100	227,0	132,0	2270		298	398	28,9
RAR1506	150	150	227,0	132,0	3405			498	33,2
RAR1508	150	200	227,0	132,0	4540		398	598	37,9
RAR15010	150	250	227,0	132,0	5675			698	42,6

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
