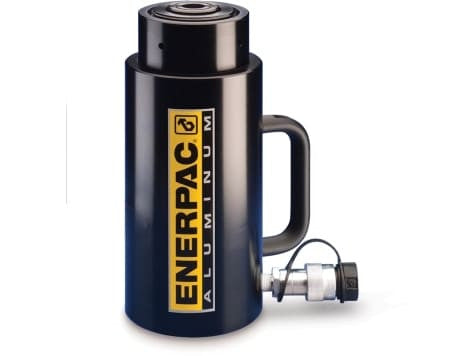

Enerpac RACL-Series Aluminum Lock Nut Cylinders

Aluminium Lock Nut provides mechanical load holding for extended periods
Hardened steel stop ring increasing cylinder life and resistance to side loads of up to 5%
Hard-Coat finish on all surfaces resists damage and extends cylinder life
Composite bearings increase cylinder life and side load resistance
Handles included on all models
Steel base plate and saddle for protection against load-induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction

Applications

Lightweight sustained load holding in corrosion-sensitive environments
Marine and chemical plant maintenance where mechanical lock-position security is critical
Structural alignment and shim-setting in weight-sensitive lifting applications
Long-duration compression testing without maintaining continuous hydraulic pressure
Food and pharmaceutical processing plant maintenance

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)
RACL202	20	218	50	31,2
RACL204	20	218	100	31,2
RACL206	20	218	150	31,2
RACL208	20	218	200	31,2	624	374	574	85
RACL2010	20	218	250	31,2
RACL302	30	309	50	44,2	221	231	281	100
RACL304	30	309	100	44,2
RACL306	30	309	150	44,2	663	331	481	100
RACL308	30	309	200	44,2
RACL3010	30	309	250	44,2	1105	431	681	100
RACL502	50	496	50	70,9
RACL504	50	496	100	70,9	709	286	386	130
RACL506	50	496	150	70,9
RACL508	50	496	200	70,9	1417	386	586	130
RACL5010	50	496	250	70,9
RACL1002	100	1002	50	143,1	716	296	346	180
RACL1004	100	1002	100	143,1
RACL1006	100	1002	150	143,1	2147	396	546	180
RACL1008	100	1002	200	143,1
RACL10010	100	1002	250	143,1	3578	496	746	180
RACL1502	150	1589	50	227,0
RACL1504	150	1589	100	227,0	2270	373	473	230
RACL1506	150	1589	150	227,0
RACL1508	150	1589	200	227,0	4540	473	673	230
RACL15010	150	1589	250	227,0

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
