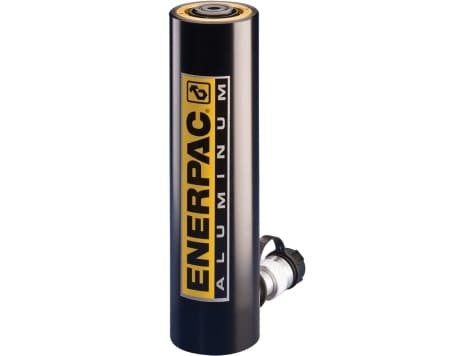

Enerpac RAC-Series Single-Acting Aluminum Cylinders

Lightweight, easy to carry and position to allow a higher cylinder capacity-to-weight-ratio
Non-corrosive by design, aluminium has always been a good material for use in many caustic environments
Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side loads of up to 10%
Hard-Coat finish on all surfaces resists damage and extends cylinder life
Handles included on all 30 - 150-ton models
For protection against load-induced damage a saddle is standard on all models
Steel base plate is standard on RAC 20-ton models and above. The steel base plate is optional only on RAC10 and 15-ton models
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity

Applications

Maintenance and repair in weight-sensitive or corrosion-prone environments
Lifting and positioning of machinery in food processing and chemical plants
Construction site lifting where lightweight, easy-carry equipment is critical
Automotive assembly and component pressing operations
Offshore and marine maintenance where corrosion resistance is essential

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
RAC102	10	88	50	12,6	60	154	201	58	1,3
RAC104	10	88	100	12,6	130	204	304	58	1,7
RAC106	10	88	150	12,6		254	404	58	2,0
RAC152	15	137	50	19,6	100	161	211	70	1,9
RAC154	15	137	100	19,6		211	311	70	2,4
RAC156	15	137	150	19,6	290	261	411	70	2,9
RAC202	20	218	50	31,2	156	174	224	85	3,6
RAC204	20	218	100	31,2	312	224	324	85	4,1
RAC206	20	218	150	31,2		274	424	85	4,6
RAC208	20	218	200	31,2	624	324	524	85	5,1
RAC2010	20	218	250	31,2		374	624	85	5,6
RAC302	30	309	50	44,2	221	181	231	100	4,5
RAC304	30	309	100	44,2		231	331	100	5,2
RAC306	30	309	150	44,2	663	281	431	100	5,9
RAC308	30	309	200	44,2		331	531	100	6,6
RAC3010	30	309	250	44,2	1105	381	631	100	7,3
RAC502	50	496	50	70,9	354	186	236	130	8,5
RAC504	50	496	100	70,9	709	236	336	130	9,8
RAC506	50	496	150	70,9		286	436	130	11,1
RAC508	50	496	200	70,9	1417	336	536	130	12,4
RAC5010	50	496	250	70,9		386	636	130	13,7
RAC1002	100	1002	50	143,1	715	221	271	180	17,3
RAC1004	100	1002	100	143,1		271	371	180	19,6
RAC1006	100	1002	150	143,1	2147	321	471	180	21,9
RAC1008	100	1002	200	143,1		371	571	180	24,2
RAC10010	100	1002	250	143,1	3578	421	671	180	26,5
RAC1502	150	1589	50	227,0	1135	243	293	230	25,3
RAC1504	150	1589	100	227,0	2270	293	393	230	29,3
RAC1506	150	1589	150	227,0		343	493	230	33,3
RAC1508	150	1589	200	227,0	4540	393	593	230	37,3
RAC15010	150	1589	250	227,0		443	693	230	41,3

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
