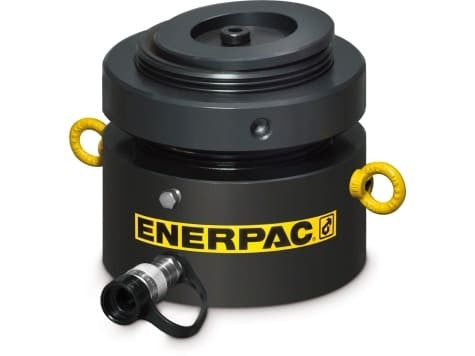

Enerpac LPL-Series Low-Height Lock Nut Cylinders

Lock nut provides mechanical load holding for a safe work environment
Integrated tilt saddle allows for up to 5 degrees of misalignment
Extreme low height for use in confined areas
Side load resistance 5-10% of maximum capacity
Overflow port as stroke limiter to prevent plunger blow-out
Replaceable plunger support bearing adds support for eccentric loads *
Nitrocarburization surface treatment for improved load and wear resistance and corrosion protection

Applications

Secure load holding after reaching target position in low-clearance applications
Structural and bridge maintenance where sustained mechanical lock is required
Machine base levelling and precision shimming operations
Long-duration compression testing without maintaining continuous hydraulic pressure
Civil infrastructure repair requiring sustained load support without active pressure

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
LPL602	62	606	50	86,6	433	126	176	140	15
LPL1002	102	1002	50	143,1	715	137	187	173	25
LPL1602	162	1589	45	227,0	1021	148	193	220	43
LPL2002	202	1985	45	283,5	1275	155	200	245	55
LPL2502	259	2541	45	363,0	1633	159	204	275	70
LPL4002	409	4008	45	572,6	2576	178	223	350	129
LPL5002	522	5114	45	730,1	3287	192	237	400	183

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
