In-Situ Flange Facing on Shutdown

 ·  7 min read  ·  By

Plant shutdowns cost tens of thousands of dollars per hour. When a failed gasket or corroded sealing surface puts your system offline, the decision of whether to remove the flange for workshop repair — or resurface it in place — can determine whether downtime is measured in hours or days. Portable flange facing machines from the Enerpac range exist precisely for this scenario: delivering precision machining in the field, to tolerances that match a workshop lathe, on flanges that aren't going anywhere.

What Is Flange Facing?

A flange face is the precision-machined sealing surface between two mating flanges — the contact area where a gasket sits and a pressure-tight joint is formed. For the joint to hold, that surface must meet strict finish specifications. ASME B16.5 / B16.47 define acceptable finish in terms of Ra (roughness average) — typically 3.2–6.3 μm for spiral wound gaskets, and 1.6–3.2 μm for ring type joint grooves.

Flange faces become non-conformant through several failure modes:

  • Corrosion and pitting from process media or environmental moisture
  • Gasket contact damage from over-torquing or chemical attack
  • Impact damage from valve internals, dropped tools, or mishandling
  • Surface irregularities introduced during original fabrication or welding
Key Point

A flange face even slightly outside Ra specification cannot form a reliable seal — regardless of gasket type, material, or applied bolt load. The gasket cannot develop the required contact stress across an uneven surface.

The Case for In-Situ Machining

The traditional repair path — remove the flange, transport it to a workshop, machine it on a lathe, return and reinstall — can extend a shutdown by several days. For large-bore flanges, valve body nozzles, or flanges welded directly into constrained pipework, removal may require significant structural work to even begin.

In-situ flange facing machines mount directly onto the pipe bore or flange face and traverse a carbide cutter across the sealing surface using a precision rotating feed mechanism — producing the same concentric or phonograph finish as a lathe, without the flange leaving the line.

  • Shutdown duration — Measured in hours, not days
  • Labour cost — Eliminates disconnection, rigging, transport, and reinstallation
  • Handling risk — No transit damage, no reinstallation errors, no disturbance to adjacent joints
  • Scope flexibility — Works on valve body nozzles, heat exchanger bonnets, vessel nozzles, and pump flanges, not only pipe-to-pipe connections

The Enerpac Flange Facing Range

Enerpac's portable flange facing machines are designed around the practical demands of field maintenance — rugged enough for outdoor refinery shutdowns, precise enough to return a face to full specification for high-integrity service.

  • Bore-mounted location

    Machines locate off the pipe bore, independent of the condition of the flange face itself — ensuring concentricity and correct tool engagement regardless of surface damage.

  • Hydraulic & pneumatic drive

    Power via hydraulic motor (portable power pack or machine-mounted unit) or pneumatic drive, matching site energy availability and hot-work permit constraints.

  • Comprehensive size range

    Coverage from DN50 (2") through to large-bore applications beyond DN1200 (48"), with modular tooling and extension systems for recessed nozzles and confined geometries.

  • Carbide insert tooling

    Indexable carbide cutting inserts deliver consistent surface finish across carbon steel, stainless, duplex, and high-alloy materials — compliant with ASME and ISO finish standards for raised-face, flat-face, and ring-type-joint groove profiles.

  • Depth control & measurement

    Integrated digital readouts or graduated feed mechanisms for depth control — ensuring the machined face stays within flatness and finish tolerance without guesswork or repeated measurement interruptions.

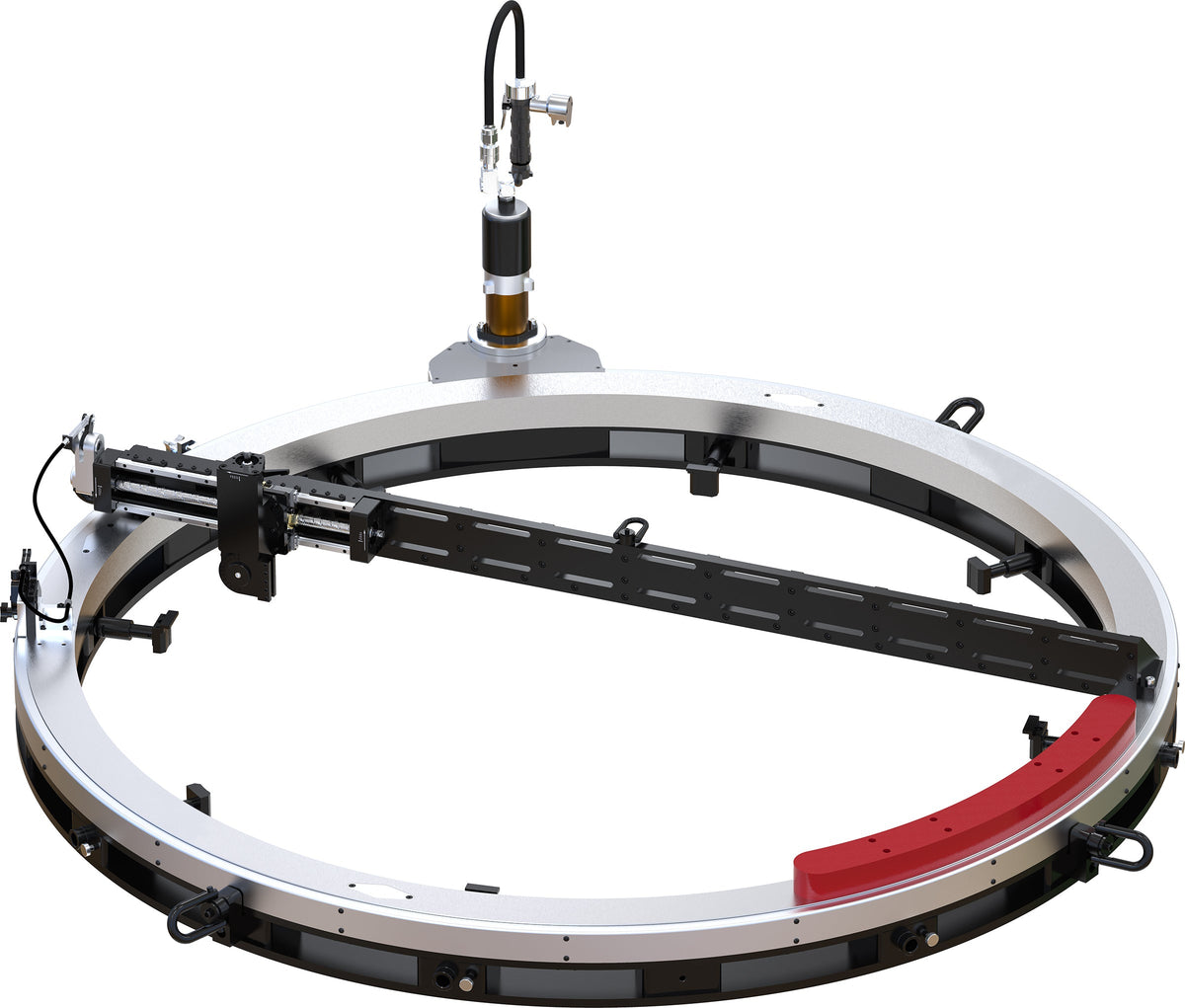

Enerpac internal (ID) mount and external (OD) mount flange facing machines side by side

Enerpac Mirage flange facing machines — internal (bore) mount and external (OD) mount configurations

Enerpac Flange Facing Machine Models

The Mirage line — now part of Enerpac — spans from manual small-bore tools through to powered machines handling flanges beyond 3,000 mm. Two mounting configurations cover the full range of access geometries: internal (bore) mount for standard pipework, and external (OD) mount for open-face or restricted-bore situations. All pneumatically driven models are available in hydraulic drive variants for sites where compressed air is unavailable or where hot-work permits restrict pneumatic use.

FF120 — Manual Flange Facing Tool

The FF120 requires no power source — driven entirely by a manual worm-gear mechanism. This makes it the practical choice for remote sites, confined-space work, and locations where pneumatic or hydraulic drive is restricted. It mounts internally (bore mount) and faces diameters from 25–305 mm (1–12 in). A fine-surface-finish kit (FF120FSF) reduces surface roughness to Ra 1.6–2.5 µm — meeting the tighter tolerances required for ring-type joint (RTJ) grooves. Weight: 6.8 kg.

MM-Series — Internal (Bore) Mount

ID-mount machines locate off the pipe bore for concentricity independent of the existing flange face condition. Pneumatic drive is standard; hydraulic drive is available on larger models. These cover the majority of process piping and vessel nozzle applications encountered during oil and gas turnarounds.

Model Facing Diameter Range Drive
MM305i 50–305 mm (2–12 in) Pneumatic (hydraulic optional)
MM610i 50–610 mm (2–24 in) Pneumatic (hydraulic optional)
MM860i 153–864 mm (6–34 in) Pneumatic
MM1000i 153–1,016 mm (6–40 in) Pneumatic
MM1500i 305–1,524 mm (12–60 in) Pneumatic
MM2000i 610–2,032 mm (24–80 in) Pneumatic
MM3000i 1,150–3,050 mm (45–120 in) Pneumatic

MM-Series — External (OD) Mount

OD-mount machines clamp to the outside diameter of the flange or pipe — the right configuration where bore access is restricted, or where flange face damage prevents reliable internal location. Hydraulic drive variants carry the -H suffix and are available across the larger sizes, covering sites without compressed air.

Model Max Facing Diameter Drive
MM200E 203 mm (8 in) Pneumatic
MM300E 305 mm (12 in) Pneumatic
MM600E 610 mm (24 in) Pneumatic
MM760E / MM760E-H 762 mm (30 in) Pneumatic / Hydraulic
MM1000E / MM1000E-H 1,016 mm (40 in) Pneumatic / Hydraulic
MM1250E / MM1250E-H 1,270 mm (50 in) Pneumatic / Hydraulic
MM1500E / MM1500E-H 1,524 mm (60 in) Pneumatic / Hydraulic
MM1775E / MM1775E-H 1,778 mm (70 in) Pneumatic / Hydraulic
MM2000E / MM2000E-H 2,032 mm (80 in) Pneumatic / Hydraulic
Surface Finish — All MM-Series

All Mirage MM-Series machines produce a continuous groove spiral serrated (gramophone) finish of 30–55 grooves per inch, achieving Ra 3.2–12.5 µm (125–492 µin) — fully compliant with ASME B16.5 and ASME B16.20 for raised-face (RF), flat-face (FF), and ring-type joint (RTJ) applications.

Industries and Applications

Oil & Gas

Refinery turnaround work, pipeline maintenance, wellhead and manifold servicing, offshore topsides.

Petrochemical

Process vessel nozzles, heat exchanger tubesheet flanges, reactor inlet and outlet connections.

Power Generation

Turbine steam flanges, HRSG pipework, cooling water infrastructure, boiler feed systems.

Water & Wastewater

Large-bore valve body facing, pump discharge flanges, pipeline infrastructure maintenance.

Mining

Slurry line flanges, high-pressure water systems, critical process piping under tight shutdown windows.

LNG & Terminals

Cryogenic service flanges requiring precise finish control for low-temperature sealing performance.

Why Surface Finish Is Non-Negotiable

The relationship between surface finish and seal integrity is threshold-dependent: a face that fails its Ra specification — even marginally — cannot form a reliable joint regardless of gasket type or bolt load applied. This matters most where the consequences of micro-leakage are severe.

Critical Service Considerations

Hydrogen service: Micro-leakage represents both process loss and a serious safety exposure. Surface condition is a fundamental sealing barrier.

High-temperature steam: Gasket creep and relaxation demand a consistent surface foundation — an irregular face accelerates joint relaxation under thermal cycling.

Regulated process media: Environmental and safety compliance requires documented surface condition records. Enerpac machines produce repeatable, documentable results.

This is why field-machined results from Enerpac equipment are accepted across major EPC contractors and refinery operators — the output is traceable, repeatable, and fully compliant with the same standards that govern workshop machining.

Enerpac Flange Spreaders and Alignment Tools

Flange facing is one step in a broader shutdown maintenance sequence. Before a face can be machined, the flange joint must often be opened — and before it can be remade, the two flanges must be brought into precise axial and angular alignment. Enerpac's hydraulic flange spreaders and alignment tools are designed to work alongside the facing machines as part of an integrated flange maintenance toolkit.

Enerpac hydraulic flange spreader opening a pipe flange joint
Enerpac hydraulic flange spreader (FSH-series wedge type)
Enerpac hydraulic flange alignment tool positioning pipe flanges for bolt-up
Enerpac hydraulic flange alignment tool (FA-series)

Flange spreaders — The Enerpac FSH-series hydraulic wedge spreaders generate controlled separation force between mating flanges, allowing the joint to be opened safely without hammer or pry bar damage to the sealing faces. Capacities range from 13 kN (FSH2) through to 89 kN (FSH55) for large-bore and high-load applications common in refinery and pipeline shutdowns.

Flange alignment tools — The FA-series hydraulic alignment tools (including the FA9TE fixed alignment and rotational variants) provide controlled positioning force to bring misaligned pipe flanges into correct axial and angular alignment for bolt-up. Used in combination with flange facing, they eliminate the pipe stress and distortion that contribute to repeat gasket failures.


Specifying the Right Machine

Machine selection depends on several variables: flange nominal bore size, available drive power at site, access constraints around the nozzle or connection, the base material being machined, and the required finish specification for the sealing system in service.

For heat exchanger tubesheet flanges and vessel nozzles — where the approach geometry may be constrained and the bore size large — extension and adaptor tooling options significantly expand what can be reached without removing major equipment items. For small-bore utility flanges, a lighter and more portable unit may be appropriate.

AD Automation can advise on machine selection for your specific application — whether you're planning a scheduled shutdown or responding to an unplanned failure. Contact our team or request a quote to start the conversation.
