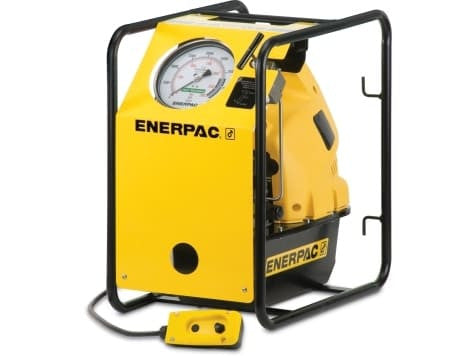

Enerpac ZUTP-Series Electric Tensioning Pumps

$0.00

GST excluded

Enerpac ZUTP-Series Electric Tensioning Pumps Solenoid-operated valve with 6 m pendant for remote control of valve and one-man operation Easily accessible manual override valve to release pres...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac ZUTP-Series Electric Tensioning Pumps

Solenoid-operated valve with 6 m pendant for remote control of valve and one-man operation
Easily accessible manual override valve to release pressure if power is lost
Safety relief valve limits output pressure
Two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for accurate operation
Replaceable 10 micron reservoir breather and inline high pressure filter helps maintain oil cleanliness for optimum performance

Applications

Bolt tensioner power supply for hydraulic bolt tensioning tools
Wind turbine foundation and flange bolt load application and verification
Pressure vessel and piping flange bolt tensioning in petrochemical plants
Bridge and civil infrastructure anchor bolt tensioning to design specifications
Precision bolt load application requiring programmable, solenoid-controlled pressure

Download the Enerpac Bolting Tools Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Specification	Value
Pump Series	ZUTP
Application	Hydraulic bolt tensioning systems
Max Working Pressure	1500 bar
Motor Size	1.25 kW
Voltage Options	230 V 1-ph 50/60 Hz / 460 V 3-ph 60 Hz
Reservoir Capacity	4.6 L
Relief Valve Setting	1500 bar
Connection	3/8" NPT or BSP high-pressure fittings

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
