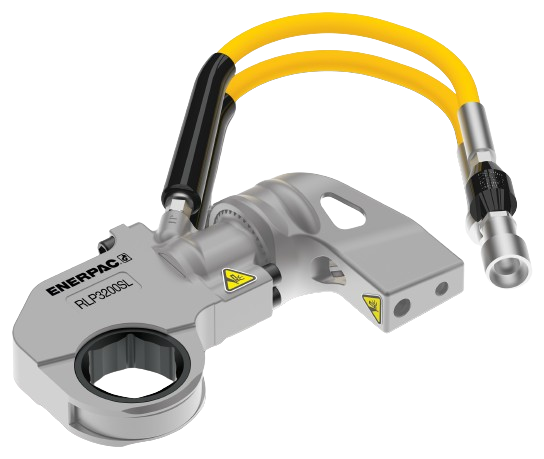

Enerpac RLP-Series Hexagon Cassettes for RSL Torque Wrenches

Innovative design that completely encloses all moving parts and minimizes pinch points
Simple robust alloy steel design with just three moving parts for reduced maintenance
Robust handles are available for both sides and the tops of cassettes to allow for extra maneuverability
Designed to give optimum strength to weight and torque to weight ratios
Minimum nose radius for trouble-free tool fit. Versatility
Interchangeable cassette design
Wide range of hexagon sizes available for all applications
Reaction arm has a simple dial lock for rapid change

Applications

Extending RSL torque wrenches to cover a wider range of bolt sizes
Oil and gas piping and vessel bolting across multiple hex sizes with one wrench body
Wind turbine bolting programmes requiring versatile hexagon tool coverage
Mining and minerals processing: large hex bolt tightening with interchangeable cassettes
Any high-torque bolting application where a single wrench body serves multiple bolt sizes

Download the Enerpac Bolting Tools Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

RLP cassettes are available in metric hex sizes from 26 mm to 155 mm. Each cassette is designed for use with its corresponding RSL low-profile hexagon wrench drive unit. Contact us with your required hex size to confirm the correct cassette model number.

Drive Unit	Max Torque @ 690 bar (Nm)	Min Torque @ 69 bar (Nm)	Hex Range (mm)	Hex Range (inch)	Weight (kg)	Available Metric Sizes
RSL1500	1,909	191	26 – 60	⅞ – 2⅜	1.6	26, 30, 32, 33, 35, 36, 38, 41, 46, 50, 55, 60
RSL3000	4,176	417	33 – 75	1⁵⁄₁₆ – 2¹⁵⁄₁₆	2.6	33, 35, 36, 38, 41, 46, 50, 55, 60, 62, 63, 65, 70, 75
RSL5000	7,190	719	46 – 80	1¹¹⁄₁₆ – 3⅛	4.1	46, 50, 55, 60, 62, 63, 65, 70, 75, 80
RSL8000	10,659	1,066	60 – 80	2⅜ – 3⅛	4.9	55, 60, 62, 63, 65, 70, 75, 80
RSL11000	15,123	1,512	62 – 110	2⁷⁄₁₆ – 4⅝	5.3	62, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115
RSL19000	25,547	2,554	75 – 115	2¹⁵⁄₁₆ – 4⅝	9.1	75, 80, 85, 90, 95, 100, 105, 110, 115
RSL28000	37,965	3,796	80 – 155	3⅛ – 6⅛	10.0	80, 85, 90, 95, 100, 105, 110, 115, 120, 123, 130, 135, 140, 145, 150, 151, 155
