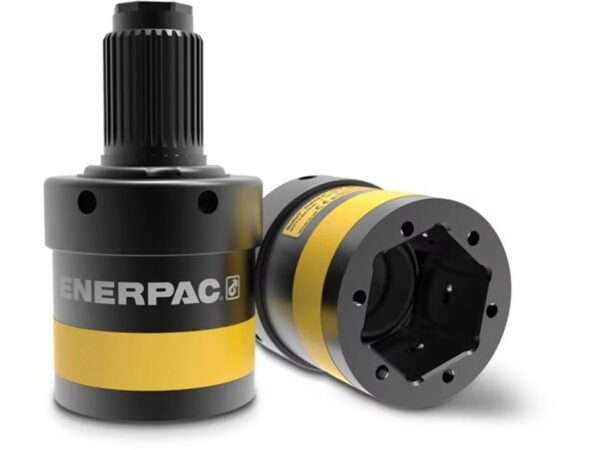

Enerpac STTL-Series Safe T Torque Lock

$0.00

GST excluded

Enerpac STTL-Series Safe T Torque Lock Hands free solution â€“ improves operator safety Eliminates the need for flogging spanners Speeds up the bolting process Includes safety cable with q...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac STTL-Series Safe T Torque Lock

Hands free solution â€“ improves operator safety
Eliminates the need for flogging spanners
Speeds up the bolting process
Includes safety cable with quick-connect carabiner's, stainless steel tethers and secure Allen-key fixings
Won’t lock on during operations
Lightweight, spark-free and non-impact for improved safety and ease of use
Transforming Enerpac S-Series & RSQ-Series wrenches into a dedicated hands-free tool
Improves operator safety during bolting operations by minimizing exposure to pinch points and high pressure hydraulic connections

Applications

Hands-free reaction arm support during hydraulic torque wrench operation
Bolting in confined or awkward spaces where manually holding a reaction arm is unsafe
Wind turbine and tower flange bolting with hands-free operator safety
Petrochemical and refinery bolting on pipework and pressure vessels
High-cycle production bolting programmes requiring improved operator efficiency and safety

Download the Enerpac Bolting Tools Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

The STTL Safe T™ Torque Lock transforms Enerpac square drive wrenches into a hands-free torque system. Available for S-Series (STTLS models) and RSQ-Series (STTLR models) spline fittings. Range: 190 Nm to 15,000 Nm. Not suitable for use on PTFE coated nuts.

Hex Size S1 to S2 (mm)	Hex Size S1 to S2 (inch)	Compatible Wrench	Model (S-Series spline)	Model (RSQ-Series spline)	Weight (kg)
27 – 32	1-1/16 – 1-1/4	S3000X / RSQ3000	STTLS31046	STTLR31046	2.0 / 1.9
46 – 50	1-13/16 – 2	S3000X / RSQ3000	STTLS31550	STTLR31550	2.6
55	2-3/16	S3000X / RSQ3000	STTLS31055	STTLR31055	3.0 / 2.9
55 – 60	2-3/16 – 2-3/8	RSQ3000	—	STTLR315238	3.5
50	2	RSQ5000	—	STTLR51550	2.7
60	2-3/8	S6000X / RSQ5000	STTLS61560M	STTLR51560M	3.7
60 – 65	2-3/8 – 2-9/16	S6000X / RSQ5000	STTLS615238	STTLR515238	3.8
65	2-9/16	S6000X / RSQ5000	STTLS61565	STTLR51565	5.3 / 5.4
70	2-3/4	S6000X / RSQ5000	STTLS61570	STTLR51570	5.9 / 6.0
75	2-15/16	S6000X / RSQ5000	STTLS61575	STTLR51575	5.6 / 5.8
60	2-3/8	S11000X / RSQ11000	STTLS111560M	STTLR111560M	4.2
65	2-9/16	S11000X / RSQ11000	STTLS111565	STTLR111565	5.8
70	2-3/4	S11000X / RSQ11000	STTLS111570	STTLR111570	6.4 / 6.5
75	2-15/16	S11000X / RSQ11000	STTLS111575	STTLR111575	6.0
80	3-1/8	S11000X / RSQ11000	STTLS1115318	STTLR1115318	7.3 / 7.4

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
