Enerpac RC-251 Hydraulic Cylinder — 25t 26mm Stroke

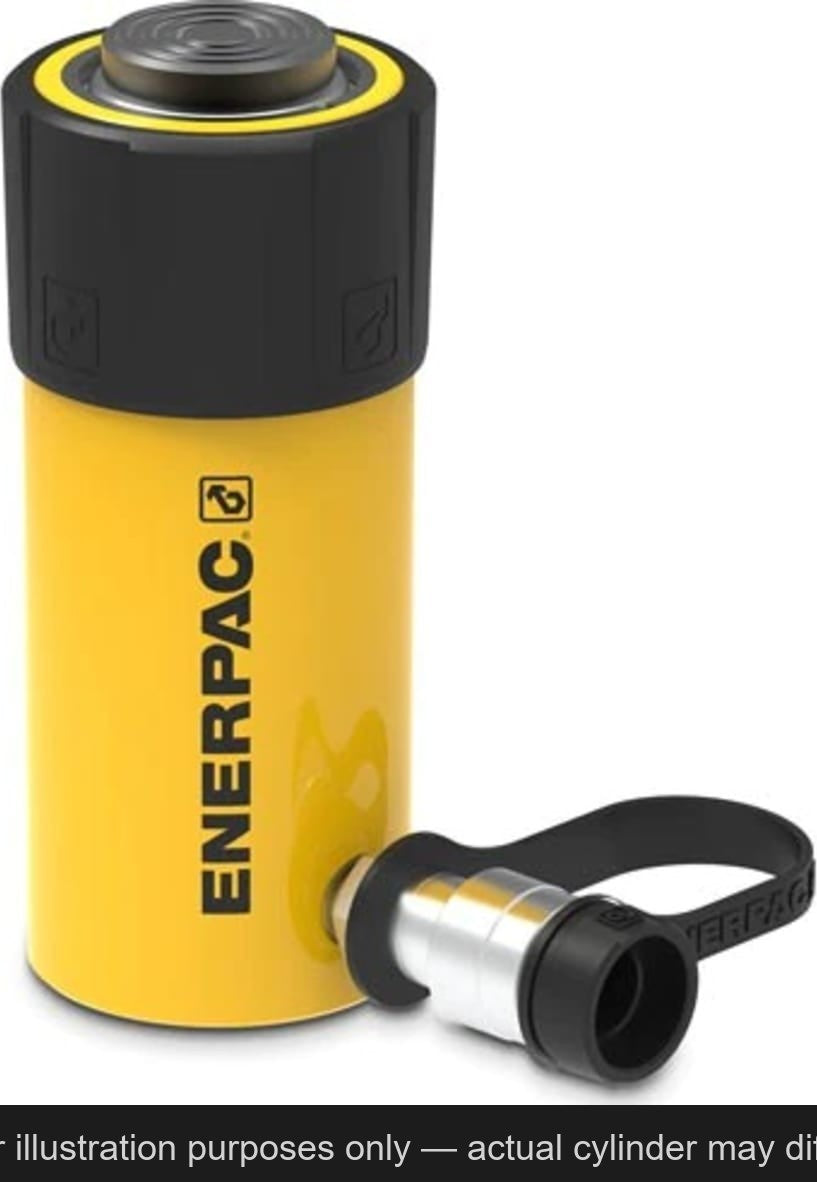

The Enerpac RC-251 (also referenced as RC251) is a 25-tonne class single-acting, spring-return hydraulic cylinder that delivers 232 kN (23.7t) of pushing force over a 26 mm stroke at up to 700 bar (10,000 PSI). Built from high-strength alloy steel and finished in Enerpac Yellow baked enamel, the RC-Trio series is the most widely stocked and specified general-purpose hydraulic cylinder in heavy industry.

Key Features

• Single-acting with integral spring return for positive, controlled retraction
• Trio Bearing system with hardened composite wear bands for optimal side-load resistance
• Strengthened Trio Stop Ring improves durability and side-load resistance
• Trio Hybrid pre-tensioned spring system provides faster retraction
• High-grade polyethylene seals for low wear and long service life
• 26 mm (1.00″) stroke · Collapsed height: 140 mm
• Maximum operating pressure: 700 bar / 10,000 PSI
• Includes CR-400 coupler, dust cap and collar thread protector
• Compatible with all Enerpac high-pressure hydraulic pumps and HC-series hoses
• Designed for use in all positions

As an authorised Enerpac distributor and service centre, AD Automation can source and supply the RC-251 (RC251) along with the full RC-Trio range. Subject to availability and lead times — contact our technical team for current stock, pricing and application advice.
