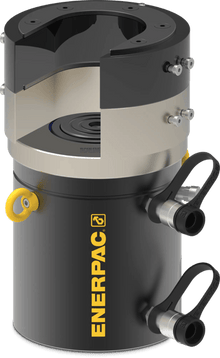

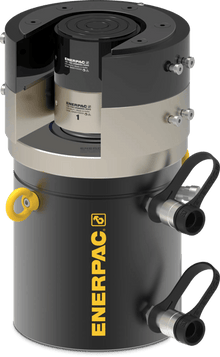

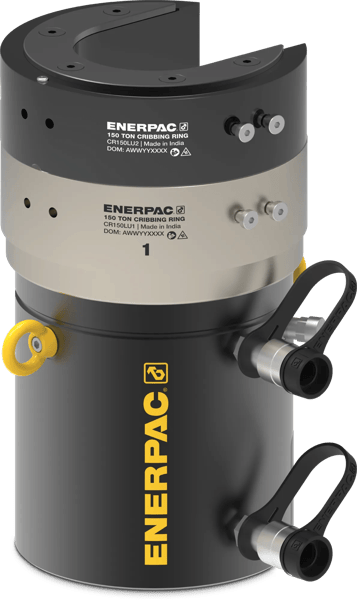

Enerpac HCR-Series High-Tonnage Double-Acting Cylinders

$0.00

GST excluded

Enerpac HCR-Series High-Tonnage Double-Acting Cylinders Hardened surface resists side loading and cyclic wear Designed to withstand 10% side load of maximum capacity Stop ring to prevent plu...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac HCR-Series High-Tonnage Double-Acting Cylinders

Hardened surface resists side loading and cyclic wear
Designed to withstand 10% side load of maximum capacity
Stop ring to prevent plunger blow-out
Weather protected, inside and out
Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
Certified lifting eyes, base mounting holes
Optional collar threads on 300 ton models and higher capacities
Fast advance and retract

Applications

Heavy industrial pressing and assembly requiring controlled push and pull force
Bridge and infrastructure hydraulic jacking with positive powered retract
Mining plant and crusher maintenance requiring high-tonnage bidirectional force
Heavy-haul and load-out operations in marine and offshore environments
Structural steel erection requiring large-capacity bidirectional hydraulic force

Download the Enerpac Hydraulic Cylinders Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Model Number	Capacity (ton)	Capacity (kN)	Stroke (mm)	Eff. Area (cm²)	Oil Cap. (cm³)	Coll. Height A (mm)	Ext. Height B (mm)	OD (mm)	Weight (kg)
HCR502	50	550	50	78,5	393	200		130	17
HCR504	50	550	100	78,5	785	401			21
HCR506	50	550	150	78,5	1178	601			25
HCR508	50	550	200	78,5	1571	801			31
HCR5010	50	550	250	78,5	1963	1001			34
HCR5012	50	550	300	78,5	2356	1202	746		38
HCR1002	100	1002	50	143,1	716	361		175	34
HCR1004	100	1002	100	143,1	1431	723			41
HCR1006	100	1002	150	143,1	2147	1084			48
HCR1008	100	1002	200	143,1	2863	1445			59
HCR10010	100	1002	250	143,1	3578	1806			66
HCR10012	100	1002	300	143,1	4294	2168	779		73
HCR1502	150	1497	50	213,8	1069	504		215	56
HCR1504	150	1497	100	213,8	2138	1007			67
HCR1506	150	1497	150	213,8	3207	1511			78
HCR1508	150	1497	200	213,8	4276	2015			95
HCR15010	150	1497	250	213,8	5346	2518			106
HCR15012	150	1497	300	213,8	6415	3022	797		116
HCR2002	200	1985	50	283,5	1418	648		250	81
HCR2004	200	1985	100	283,5	2835	1296			96
HCR2006	200	1985	150	283,5	4253	1944			111
HCR2008	200	1985	200	283,5	5671	2592			139
HCR20010	200	1985	250	283,5	7088	3240			153
HCR20012	200	1985	300	283,5	8506	3888	808		168
HCR2502	250	2541	50	363,1	1815	680		280	107
HCR2504	250	2541	100	363,1	3631	1361			127
HCR2506	250	2541	150	363,1	5446	2041			146
HCR2508	250	2541	200	363,1	7261	2721			184
HCR25010	250	2541	250	363,1	9076	3402			207
HCR25012	250	2541	300	363,1	10.892	4082	831		227
HCR3002	300	3036	50	433,7	2169	598		305	159
HCR3004	300	3036	100	433,7	4337	1196			183
HCR3006	300	3036	150	433,7	6506	1794			208
HCR3008	300	3036	200	433,7	8675	2392			232
HCR30010	300	3036	250	433,7	10.843	2989			257
HCR30012	300	3036	300	433,7	13.012	3587	846		281

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
