Enerpac ATP-Series Ultra-High Pressure Air Pump for Tensioning

$0.00

GST excluded

Enerpac ATP-Series Ultra-High Pressure Air Pump for Tensioning General purpose, high pressure air driven two speed pump unit for products requiring up to 1500 bar hydraulic pressure Compact, l...

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

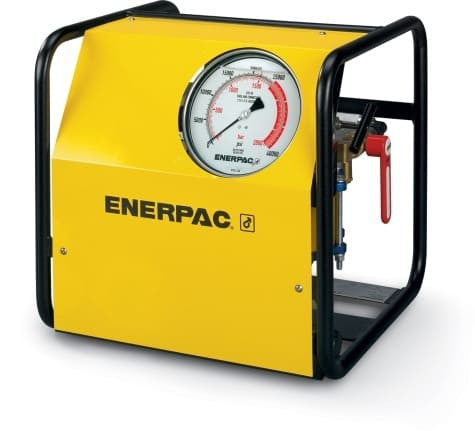

Enerpac ATP-Series Ultra-High Pressure Air Pump for Tensioning

General purpose, high pressure air driven two speed pump unit for products requiring up to 1500 bar hydraulic pressure
Compact, lightweight, rugged steel frame for protection and easy handling
Prelubricated pump element, does not require an airline lubricator
Easily adjustable output pressure control
Integrated and protected easy to read glycerin ï¬lled gauge
Safety relief valve limits output pressure. â‘ Shut-off Valve â‘¡ Out Port 1/4" BSPM with BR150 coupler â‘¢ Filter/Regulator â‘£ Air On/Off Valve Air Inlet 1/2" NPTF Page: Page: Page: ATEX Certified The ATP-Pump is tested and certified according ATEX

Applications

Bolt tensioning on wind turbine tower flanges and nacelle connections
Bridge and structural steel high-tension bolt load verification
Pressure vessel and piping flange joint tensioning in petrochemical plants
Foundation anchor bolt tensioning in large civil infrastructure projects
High-integrity fastening applications requiring verified, precise bolt load

Download the Enerpac Bolting Tools Catalogue (PDF) – full specifications and dimensional drawings for this product range.

AD Automation is an authorised Enerpac distributor and service centre. Contact us for pricing and availability.

Specification	Value
Pump Series	ATP
Application	Air-driven bolt tensioning (up to 1500 bar)
Max Operating Pressure	1500 bar
Drive Air Pressure	5–7 bar (75–100 psi)
Air Consumption	approx. 300 l/min at 7 bar
Max Output Flow (1500 bar)	0.11 l/min
Reservoir Capacity	0.5 L
Weight	approx. 6 kg

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
