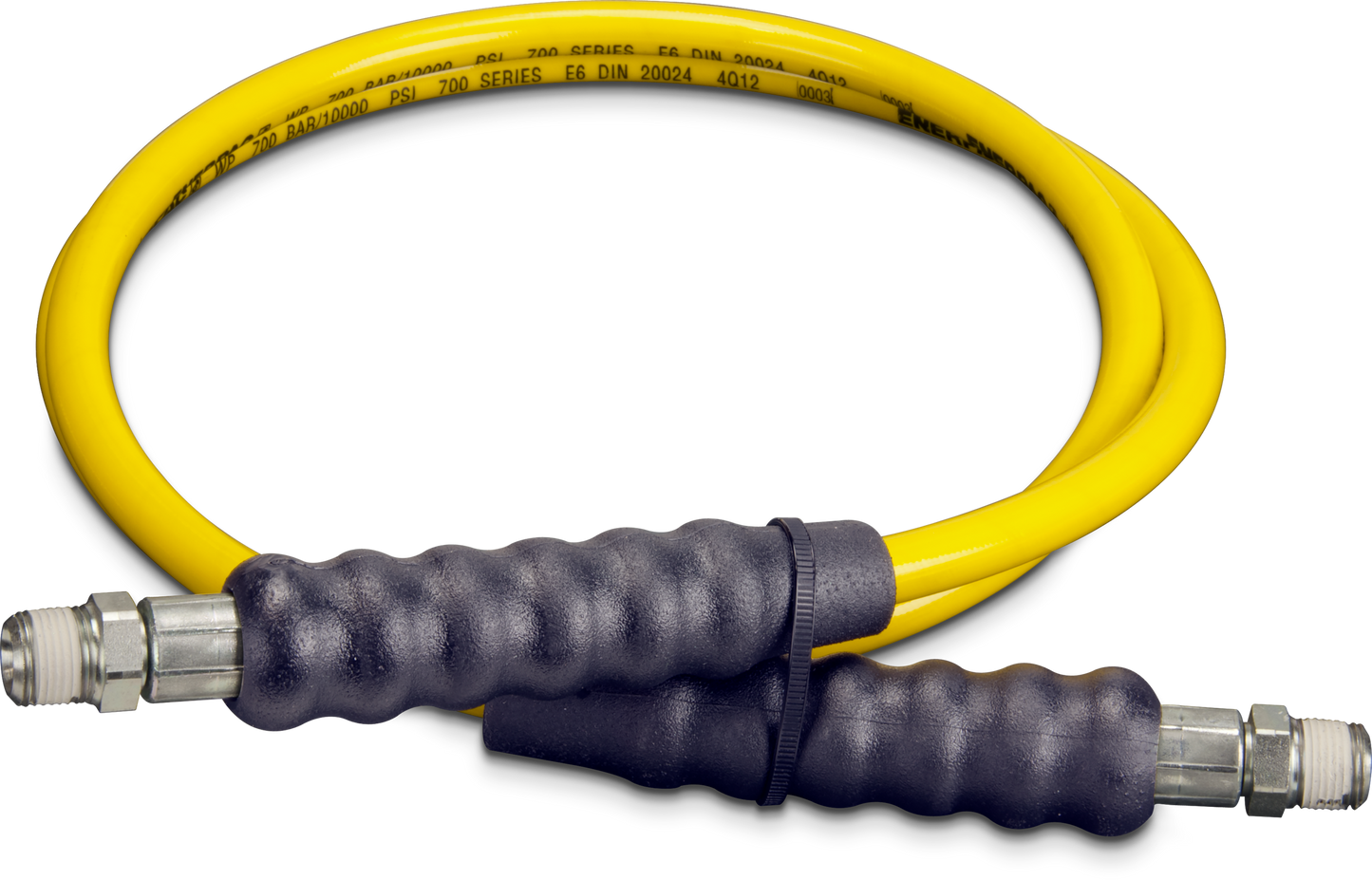

H7206, 1.8 m, Thermo-plastic High Pressure Hydraulic Hose, 6.4 mm Internal Diameter

Model: H7206 | ECCN: EAR99 | Harmonization: 3917310000
Series: H700 | Product Line: Industrial Tools, Workholding Tools


H700-Series Hoses have a safety factor of 4:1 to provide the reassurance and reliability needed for demanding high-pressure applications.

Each hose contains two layers of steel wire braids covered by a polyurethane sleeve - providing the strength and abrasion resistance needed for repeated use in tough working environments.

Diameters available 0.25 and 0.38” (6.4 and 9.7mm), and connection types include ¼” NPTF, ⅜" NPTF and CH604.

A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps to improve hose life and durability.

For demanding applications, featuring a 4:1 safety factor

Maximum working pressure of 700 bar

Outside jacket is polyurethane, to provide maximum abrasion resistance

Exhibits low volumetric expansion under pressure to enhance overall system efficiency

Vinyl strain relief guard on both ends of hose to improve life and durability on all models.
