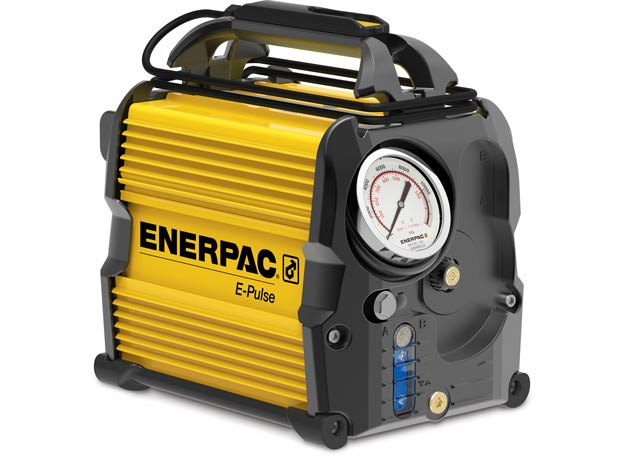

EP3304SE-G, Electric Hydraulic Pump, 3,0 liters Usable Oil, Schuko CEE 7/7 Plug, with Gauge

Model: EP3304SE-G | ECCN: EAR99 | Harmonization: 8413500070
Series: E-Pulse | Product Line: Industrial Tools

The Enerpac E-Pulse drives high productivity through its innovative design. Smart controls enable the motor to maintain constant power providing higher flow than traditional pumps. Adjustable speed control enables precision as required. E-Pulse is designed for convenience.


Features include a cord management system and integrated pendant control with a magnet that fits securely into the handle of the pump. The durable aluminum housing is designed to give easy access for serviceability. E-Pulse is the heart to any hydraulic system, ensuring high performance and providing ultimate convenience.


Performance

• Two-stage pump with high by-pass pressure:
  • 2,13 l/min at 175 bar
  • 0,52 l/min at 700 bar

• Smart controls enable motor to maintain constant power across the pressure range
• 24VDC power regulator minimizes effects of poor power supply
• Six-piston block design provides even flow for smooth operation of cylinder or tool.

Durability

• Durable aluminium housing
• High-efficiency permanent magnet, direct drive motor enables continuous use and long service life
• Built-in thermal protection
• IP Rating:

  • IP54 on the pump
  • IP67 on the pendant

Convenience

• Speed control with dial adjustment for precise operation
• Integrated pressure gauge
• Pendant and cord management system
• Convenient oil fill port, oil level indicator and automatic breather.

Interactive Pendant

• Operation, programming and diagnostics status provided to operator with yellow, green, and red LED as well as vibration pulses.
• Fault codes warn operators of any issues related to voltage, temperature, button controls, or if professional service is required.
