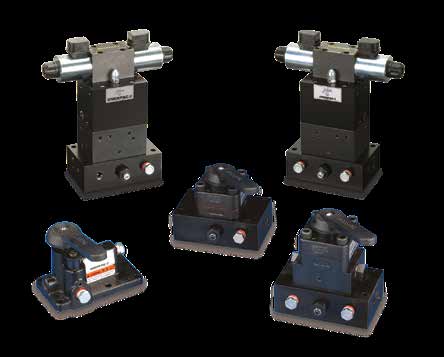

Enerpac VM/VE-Series Pump-Mounted Directional Control Valves

$0.00

GST excluded

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac VM/VE-Series Pump-Mounted Directional Control Valves retrofit directly onto most Enerpac pumps, giving Advance / Hold / Retract control for single and double-acting hydraulic cylinders. The VM-Series uses a manual lever, while the VE-Series uses a 24 VDC solenoid for remote electrical operation. Max flow: 17 L/min at 700 bar.

Key Features

Pump-mounted — fits directly onto most Enerpac pumps
VM-Series: manual lever control
VE-Series: 24 VDC solenoid for remote electrical operation
Advance / Hold / Retract operation
Max flow: 17 L/min at 700 bar (10,000 psi)
Locking and Venturi-return variants available

Series	Model	Cylinder Type	Valve Type	Weight (kg)
VM (Manual)	VM22	Single-acting	3-Way, 2-Position	2.5
VM (Manual)	VM32	Single-acting	3-Way, 2-Position	2.5
VM (Manual)	VM33	Single-acting	3-Way, 3-Position, Tandem Center	3.0
VM (Manual)	VM33VAC	Single-acting	3-Way, 3-Position, Tandem Center, Venturi	3.5
VM (Manual)	VM43	Double-acting	4-Way, 3-Position, Tandem Center	3.1
VM (Manual)	VM33L	Single-acting	3-Way, 3-Position, Tandem Center, Locking	4.8
VM (Manual)	VM43L	Double-acting	4-Way, 3-Position, Tandem Center, Locking	4.9
VE (Solenoid)	VE32	Single-acting	3-Way, 2-Position	3.9
VE (Solenoid)	VE32D	Single-acting	3-Way, 2-Position, Dump	3.9
VE (Solenoid)	VE33VAC	Single-acting	3-Way, 3-Position, Venturi	10.0
VE (Solenoid)	VE33	Single-acting	3-Way, 3-Position, Tandem Center	9.3
VE (Solenoid)	VE43	Double-acting	4-Way, 3-Position, Tandem Center	9.3

Specification	Value
Max Flow Capacity	17 l/min
Max Operating Pressure	700 bar
VM Operation	Manual lever (hand-operated)
VE Operation	Solenoid (24 VDC)
Mounting	Pump-mounted — retrofits on most Enerpac pumps
Valve Function	Advance / Hold / Retract for single and double-acting cylinders
Locking Option	VM-Series locking models (suffix L) provide load-holding via pilot-operated check valve
Venturi Technology	Venturi models (VAC suffix) accelerate gravity/spring-return cylinder retraction

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
