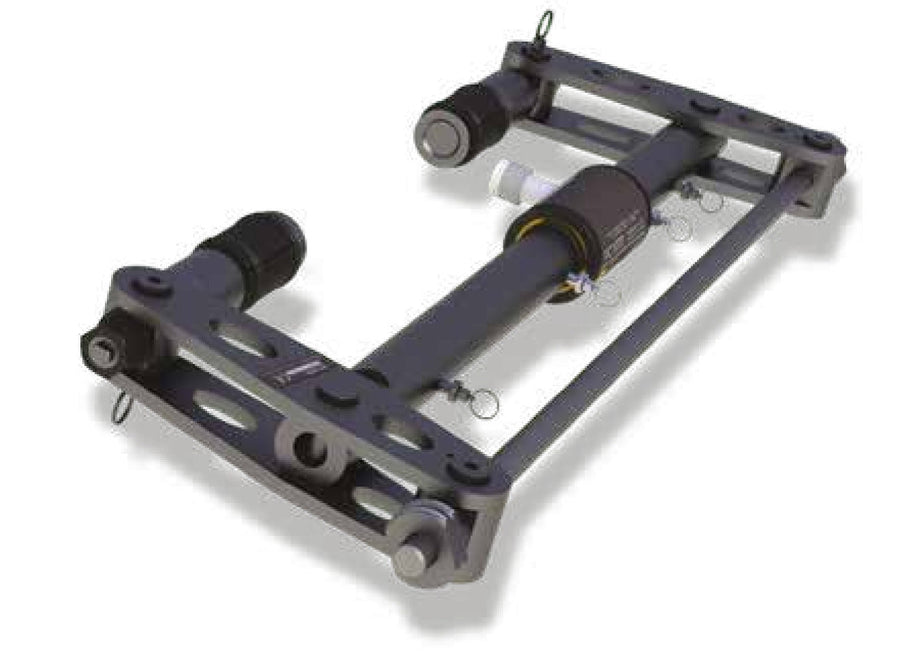

Enerpac Equalizer VC10/25TEMAX Secure-Grip Valve Change-Out Tool Kit

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

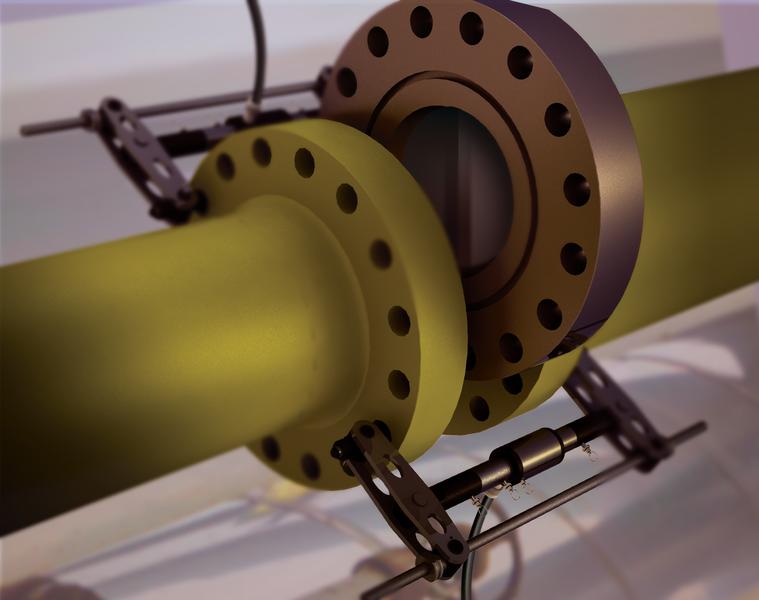

The Enerpac Equalizer VC-Series uses the same Secure-Grip collet technology as the SG flange spreaders, developed for removing wafer and butterfly valves, spades, spacers and gaskets from large flange joints. The span is longer than a standard Secure-Grip flange spreader and it is adjustable, so one kit covers a range of applications.

Features

Removes wafer/butterfly valves, spades, spacers and gaskets from large flange joints
Longer span than a standard Secure-Grip flange spreader, and adjustable
Unique expanding collet technology, secure bolt-hole locking
Covers ANSI, DIN, Norsok L005, ASME, API and BS flanges
100 kN spreading force, up to 580 mm spreading distance
700 bar
STD kits include one tool; MAX kits include a twin-port pump set
A minimum of two tools must be used when opening a flange joint

Specifications

Kit model	VC10/25TEMAX
Type	Hydraulic (MAX)
Max spreading force per tool	100 kN
Max spreading distance	490 mm
Min access gap	0 mm
Bolt-hole diameter	75 – 108 mm
Tool kit weight	58 kg
Pump kit weight	30 kg
Gross kit weight	146 kg
Tool number	VC10/25TE

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
