Enerpac Equalizer SG18TESTD Secure-Grip In-Line Flange Spreader Kit

Enerpac Equalizer SG18TESTD Secure-Grip In-Line Flange Spreader Kit

Price on application — Request a quote

The Enerpac Equalizer SG18TE and SG25TE are in-line Secure-Grip flange spreaders for larger flanges, actuated by an external hand pump. Same expanding collet technology as the rest of the Secure-Gr...

Custom Quote →
Australia Wide ShippingFast & reliable delivery
Quality AssuredPremium products
Technical SupportWe're here to help

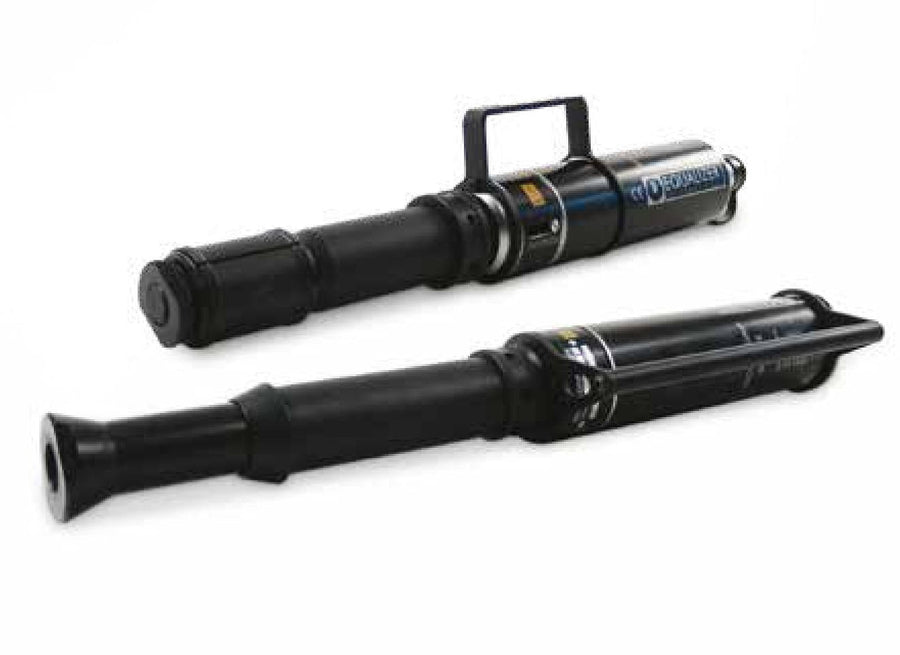

The Enerpac Equalizer SG18TE and SG25TE are in-line Secure-Grip flange spreaders for larger flanges, actuated by an external hand pump. Same expanding collet technology as the rest of the Secure-Grip range, in a form that suits bolt holes from 59.5 to 108 mm.

Features

  • For larger-sized flanges
  • Actuated by an external hand pump
  • Suitable for bolt holes from 59.5 to 108 mm
  • Unique expanding collet technology, secure bolt-hole locking
  • 700 bar maximum operating pressure
  • Supplied with a 700 bar HP550S single-port sealed hand pump with gauge, hose, collets and case
  • A minimum of two flange spreading tools must be used when opening a flange joint

Specifications

Kit model SG18TESTD
Type Hydraulic, in-line
Max spreading force per tool 180.0 kN
Max spreading distance 100 mm
Min access gap 0 mm
Bolt-hole diameter 59.5 – 75 mm
Tool weight 14 kg
Kit weight 45 kg
Case dimensions 890 x 570 x 165 mm
Tool number SG18TE

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
