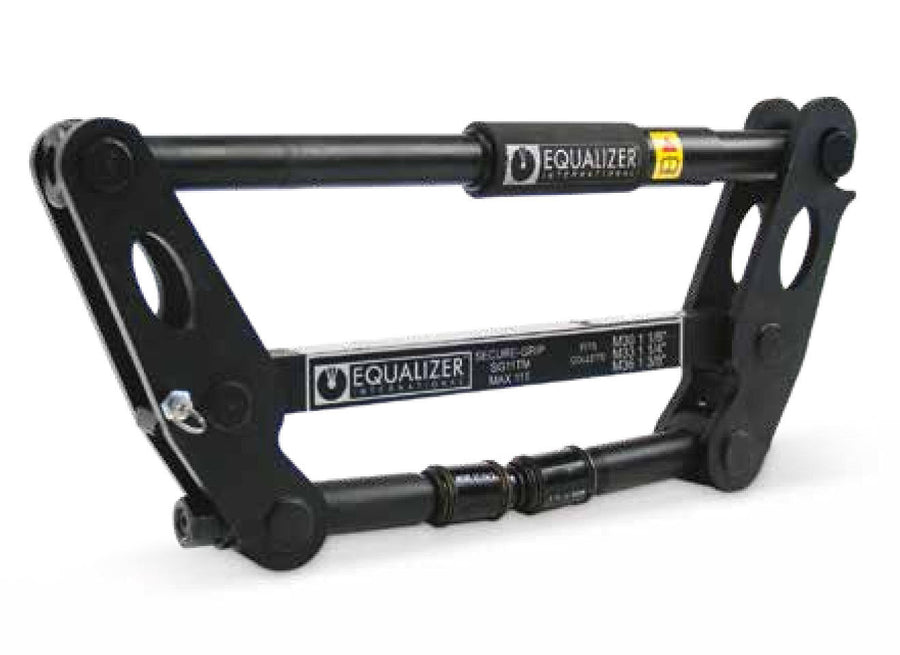

Enerpac Equalizer SG13TESTD Secure-Grip Flange Spreader Kit

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

The Enerpac Equalizer SG-Series Secure-Grip flange spreaders are the answer when there is no access gap at all, or where a spacer, wafer or butterfly valve sits between the flanges. Unique expanding collet technology locks the tool into the flange bolt holes and pulls the mating flanges apart, which makes the Secure-Grip arguably the safest flange spreader available. The range covers ANSI, DIN, SPO, ASME, API and BS flanges.

Features

Little or no access gap required
Unique expanding collet technology
Secure bolt-hole locking mechanism
Covers ANSI, DIN, SPO, ASME, API and BS flanges
Measurable, controlled flange spreading force
Time-saving, simple operation
Supplied in an aluminium carry case with protective foam inserts
A minimum of two flange spreading tools must be used when opening a flange joint

Specifications

Kit model	SG13TESTD
Type	Hydraulic
Max spreading force per tool	130.0 kN
Max spreading distance	115 mm
Min access gap	0 mm
Bolt-hole diameter	38 – 49 mm
Tool weight	21.5 kg
Kit weight	40.5 kg
Case dimensions	890 x 570 x 165 mm
Tool number	SG13TE

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
