Enerpac NSH42 Hydraulic Nut Splitter Cutting Head

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

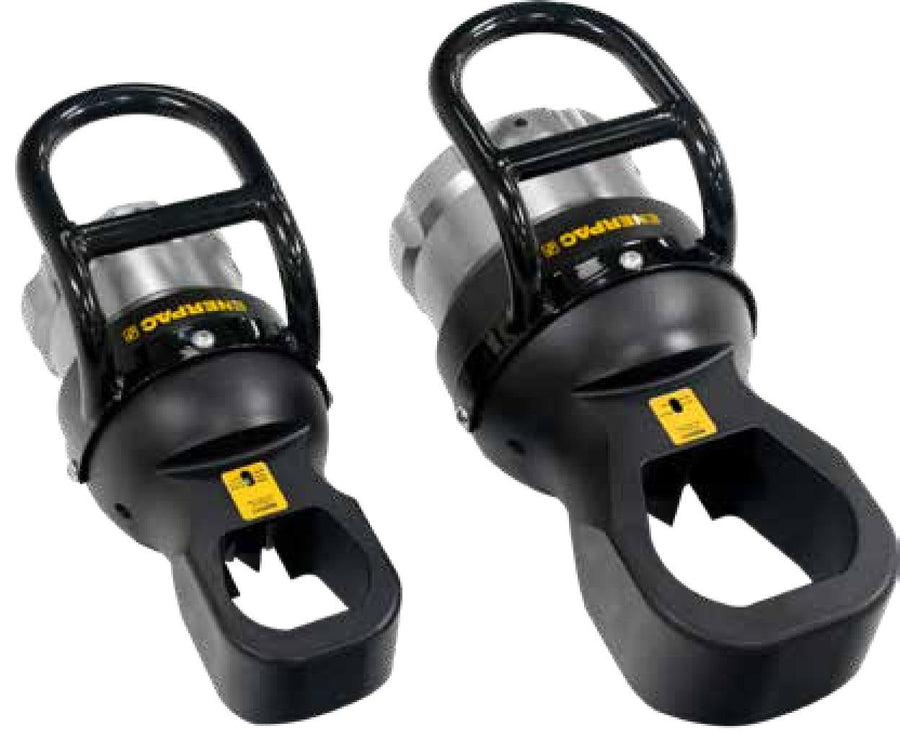

The large-bore Enerpac NSH-Series splits seized and corroded nuts from M45 to M90 without grinding or flame cutting. A complete nut splitter is a cutting head (NSH) plus a power head (NSPH single-acting, or NSPH-D double-acting for subsea). The blade positioning scale presets the cutting distance so the bolt thread is not damaged as the nut is cut. All NSH cutting head and NSPH power head combinations are CE–ATEX certified.

Features

Designed to fit standard BS/ANSI flanges
Blade positioning scale eliminates bolt damage
Adjustable cutting depth
Interchangeable power heads with cutting blade
Single-acting spring-return power head (NSPH); double-acting (NSPH-D) for subsea
360° rotation with lockable handle
ATEX certified: Ex II 2 G c T6
700 bar maximum operating pressure
Requires a power head — sold separately

Specifications

Cutting head	NSH42
Bolt range	M76 – M90
Hexagon nut range	110 – 130 mm
Max cutting force	178 ton (1733 kN)
Oil capacity	1100 cm³
Cutting head weight	44 kg
Power heads	NSPH4 / NSPH4D
Head + power head weight	82 kg

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
