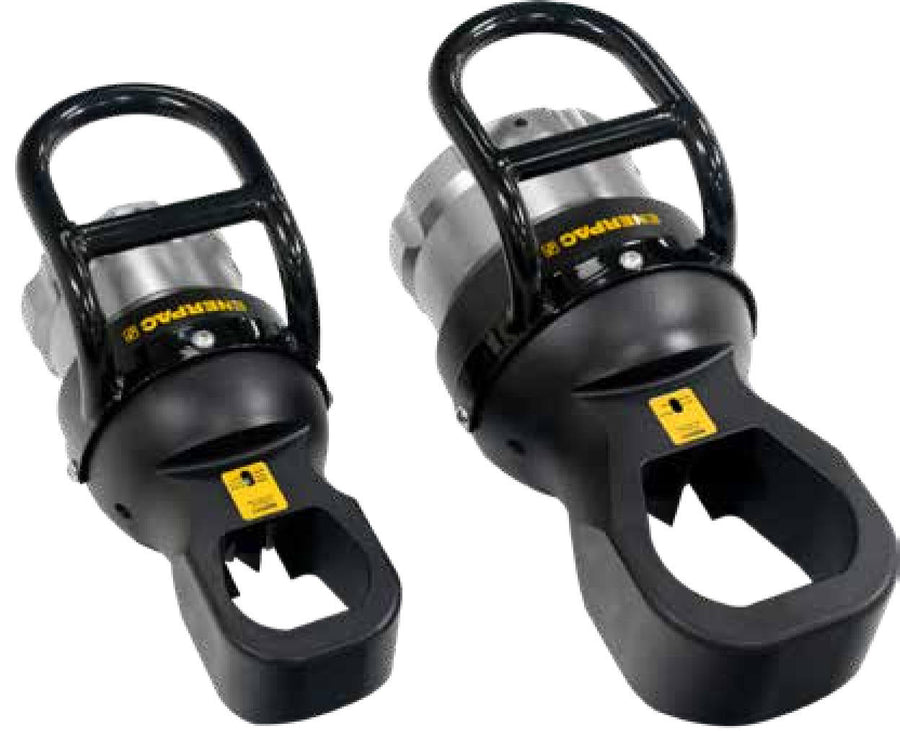

Enerpac NSH33 Hydraulic Nut Splitter Cutting Head

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

The large-bore Enerpac NSH-Series splits seized and corroded nuts from M45 to M90 without grinding or flame cutting. A complete nut splitter is a cutting head (NSH) plus a power head (NSPH single-acting, or NSPH-D double-acting for subsea). The blade positioning scale presets the cutting distance so the bolt thread is not damaged as the nut is cut. All NSH cutting head and NSPH power head combinations are CE–ATEX certified.

Features

Designed to fit standard BS/ANSI flanges
Blade positioning scale eliminates bolt damage
Adjustable cutting depth
Interchangeable power heads with cutting blade
Single-acting spring-return power head (NSPH); double-acting (NSPH-D) for subsea
360° rotation with lockable handle
ATEX certified: Ex II 2 G c T6
700 bar maximum operating pressure
Requires a power head — sold separately

Specifications

Cutting head	NSH33
Bolt range	M45 – M64
Hexagon nut range	70 – 95 mm
Max cutting force	105 ton (1025 kN)
Oil capacity	550 cm³
Cutting head weight	22 kg
Power heads	NSPH3 / NSPH3D
Head + power head weight	44 kg

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.
