Enerpac NC6075D Hydraulic Nut Splitter

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

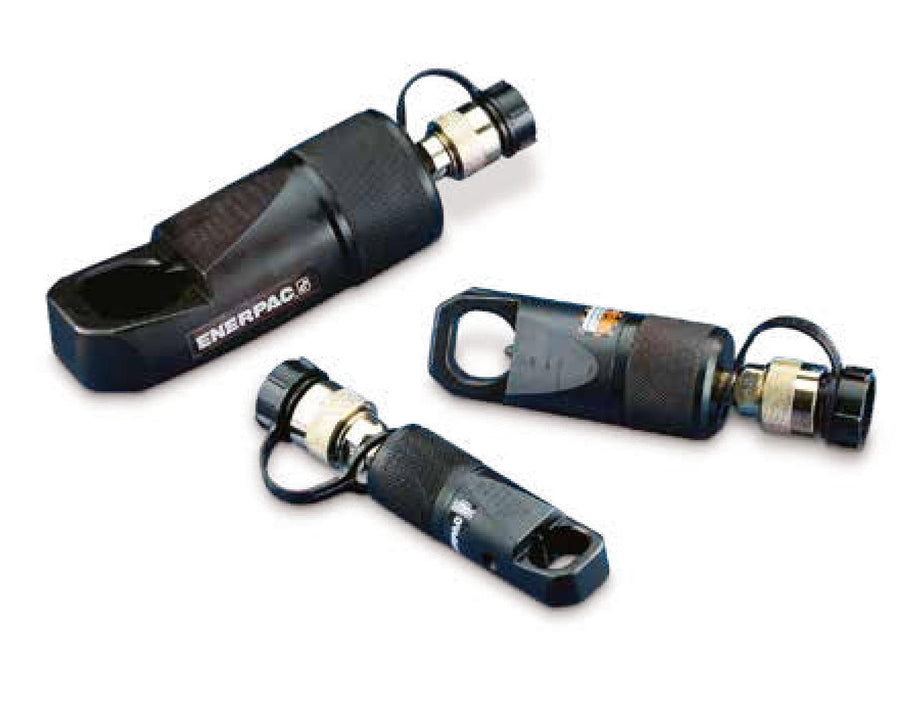

Enerpac NC-Series hydraulic nut splitters are the safest and easiest way to remove corroded and frozen nuts. Nut splitting avoids the cost, time and fire risk of cutting torches, hammers and chisels, and it does not damage the stud or the joint components. Single-acting with a spring-return cylinder; heavy-duty chisels can be reground.

Features

Compact, ergonomic and easy to use
Unique angled head design
Two-blade NC-D models split the nut from both sides in one action
Single-acting, spring-return cylinder
Heavy-duty chisels can be reground
Supplied with spare chisel, spare set screw and wrench
CR400 female half coupler standard
700 bar maximum operating pressure
For grade 8 metal nuts up to HRc-44. Not for square, star, round or stainless nuts.

Specifications

Model	NC6075D
Blades	Double
Bolt range	M39 – M48
Hexagon nut range	60 – 75 mm
Max cutting force	90 ton (882 kN)
Oil capacity	492 cm³
Weight	42.9 kg

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
