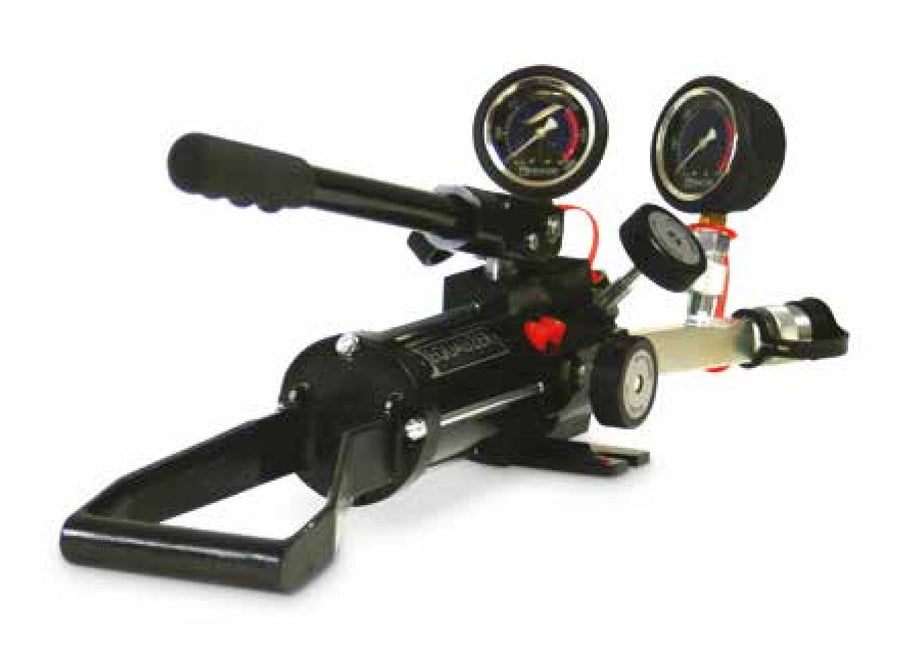

Enerpac HP550SDMIN Hydraulic Sealed Hand Pump

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

Enerpac HP-Series two-speed sealed hydraulic hand pumps are designed with a seal oil reservoir, so they can be used in any orientation without the risk of oil spills or air contamination. They are operable at all angles and highly resistant to accidental spillage of hydraulic fluid. Output is regulated to 700 bar and delivered from threaded 3/8 inch NPT output ports, so they drive any 700 bar rated equipment within its capacity.

Features

Two-speed: 1st stage 13.8 bar, 2nd stage 700 bar
Sealed oil reservoir — usable in any orientation
3.62 cm³ (1st stage) / 0.77 cm³ (2nd stage) per stroke, 18 mm piston stroke
3/8 inch NPT output ports
Single-port (S), twin-port (D) and double-acting (SD) versions
ATEX-certified versions available: II 2G Ex h IIB T5 Gb, II 2D Ex h IIIC T212°F Db

Specifications

Model	HP550SDMIN
Type	Double-acting
Nominal oil capacity	580 cm³
Useable oil capacity	550 cm³
Max handle effort	25 kg
Overall length	579 mm
Pump weight	5.7 kg
Kit weight	6.0 kg
Tool number	HP550SD

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.
