Enerpac FSM8 Flange Spreading Wedge

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

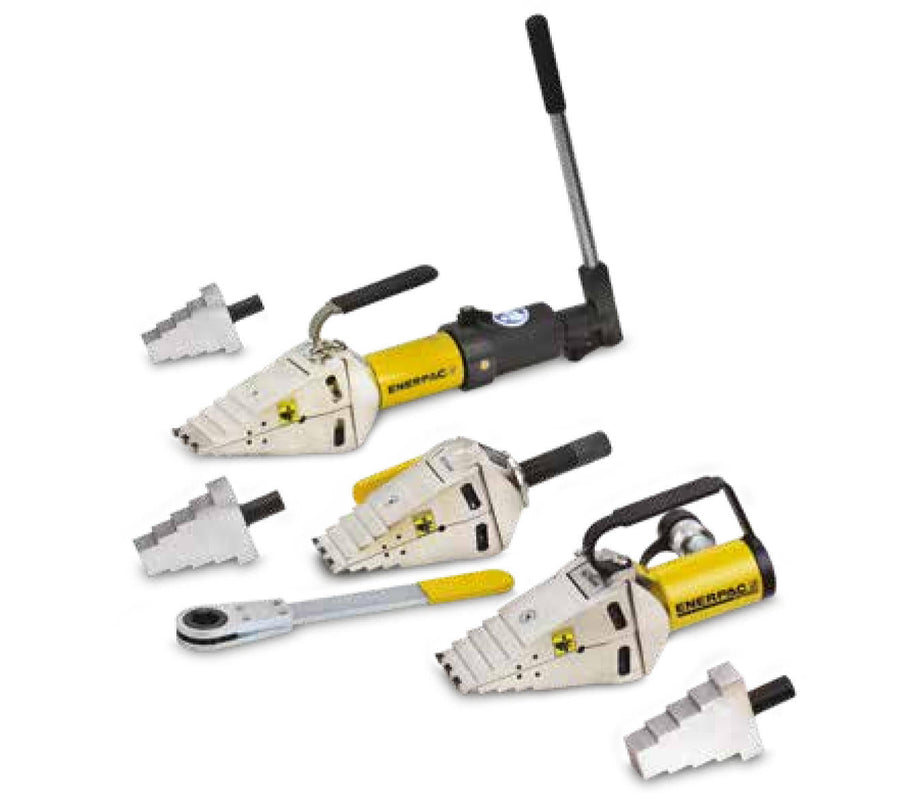

The Enerpac FSC, FSH and FSM-Series flange spreading wedges separate bolted flange joints safely and quickly, replacing ropes, pulleys, podgers, tirfors, come-alongs and hammers. The interlocking wedge design removes first-step bending and the risk of the tool slipping out of the joint, and it needs an access gap of only 6 mm to start.

Features

Unique interlocking wedge design — no first-step bending, no slipping out of the joint
Requires an access gap of only 6 mm
Few moving parts for durability and low maintenance
Safety block SB1 included with FSC14, FSH14 and FSM8
Maximum spread 80 mm using FSB1 stepped blocks
Maximum operating pressure 700 bar (FSH14)

Specifications

Model	FSM8
Spreader type	Mechanical (SW22 ratchet spanner included)
Max spreading force	7.3 ton (72 kN)
Tip clearance	6 mm
Max spread	80 mm
Oil capacity	—
Weight	6.5 kg

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.
