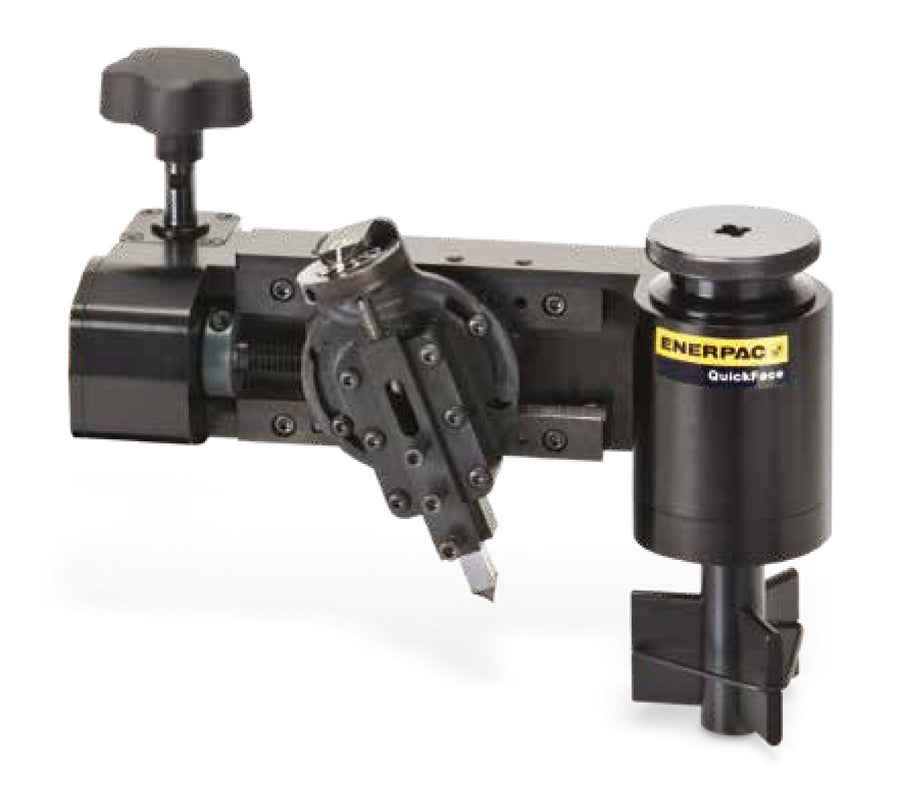

Enerpac FF120 QuickFace Mechanical Pipe Flange Facing Tool

The Enerpac FF120 QuickFace is a portable, hand-operated flange facing tool that resurfaces flat pipe flange faces in place — no air, electric or hydraulic power, and no hot work permit. It turns a two-man job with heavy equipment and portable generators into a one-man job. The tool body expands on collets to centre itself in the bore, so the cut is genuinely concentric, and the worm-gear arm gives a spiral "gramophone" finish with the precision of a lathe.

Features

• Hand-operated cold work tool — no external power, no hot work permit
• Lightweight and portable: 6.8 kg tool, 15 kg complete in its wheeled case
• Flange OD facing range ø 25.4 – 304.8 mm (1 – 12 inch)
• Internal pipe mounting range ø 25.4 – 152.4 mm (1 – 6 inch)
• Interchangeable collets for fast set-ups across many flange sizes
• Interchangeable lead screws for damaged raised-face (RF) or flat-face (FF) joints
• Calibrated cross slide, 0.127 mm (.005 inch) per mark cutting depth adjustment
• Surface finish Ra 3.2 – 12.5 µm, 30–55 grooves per inch
• Uses standard 3/8 inch or 10 mm tool steel
• Not suitable for lens-ring joint flanges or ring type joint (RTJ) flanges

Specifications

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.
