Enerpac Equalizer FC10TEMAX Flange Pulling Tool Kit

Price on application — Request a quote

Custom Quote →

Australia Wide ShippingFast & reliable delivery

Quality AssuredPremium products

Technical SupportWe're here to help

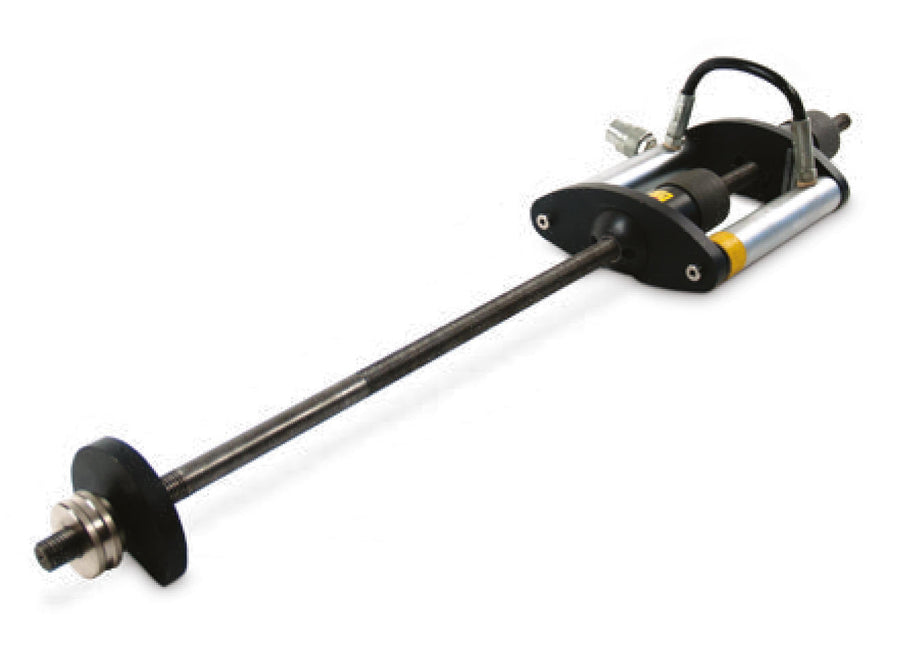

The Enerpac Equalizer FC10TE flange pulling (closing) tool draws misaligned flanges together for bolt-up, with a reciprocating hydraulic action and a slide-and-lock collet system. It suits any flange with a bolt-hole diameter of 25.4 mm (1 inch) or greater, including ANSI, DIN, Norsok L005, ASME and BS, and is subsea compatible.

Features

For all flanges with a bolt-hole diameter of 25.4 mm (1 inch) or greater
Slide and lock collet system
Low profile tool
Works on vertical and horizontal flanges: ANSI, API, BS, DIN and Norsok L005
Robust yet light weight
Subsea compatible
Reciprocating hydraulic action
Reduces operator fatigue and pinch points
100 kN closing force, 570 mm closing distance, 700 bar
A minimum of two flange closing tools must be used when flange pulling

Specifications

Kit model	FC10TEMAX
Type	Hydraulic (MAX, two tools, twin-port pump)
Max closing force per tool	100 kN
Closing distance	570 mm
Flange dim. A	16 – 570 mm
Flange dim. B min	25.4 mm
Flange dim. C min	32 mm
Tool weight	11 kg
Kit weight	36.5 kg
Case dimensions	890 x 570 x 165 mm

Download the Enerpac flange tools catalogue (PDF) — full dimensional drawings and model-by-model specifications.

AD Automation is an authorised Enerpac distributor and service centre. Most Enerpac equipment is supplied to order — request a quote and we will confirm price, lead time and the right configuration for your job. We respond to quote requests within 2 business hours. Hire options are available, and we service and repair everything we sell from our Keysborough workshop in Melbourne.

Full specifications available on request. Contact our team or call (03) 9798 7522 for technical details, compatibility advice and lead times.

Suitable for lifting, pressing, pushing, pulling and clamping in industrial applications including mining, rail, construction, manufacturing and maintenance environments.

Australia-wide delivery available. Contact our team for lead times on specific configurations. Technical support available Mon – Fri: 9:00am – 4:00pm.

Contact our team for stock availability and express options.
